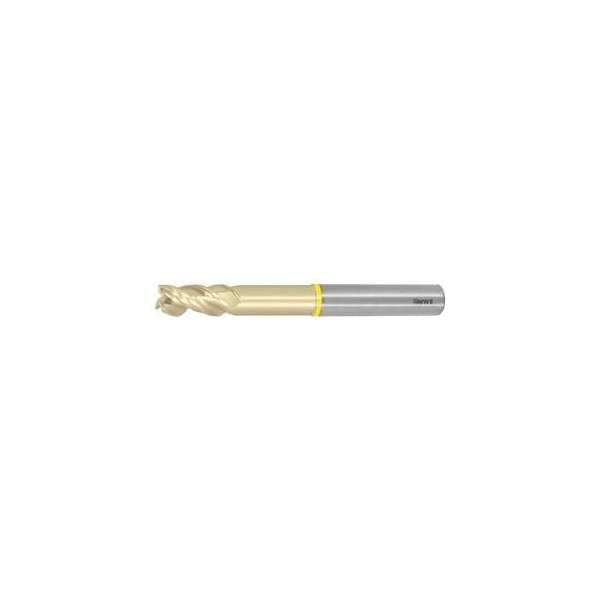

Solid Carbide Torus End Mill, for Aluminum, ZOX Coated, 6/0.5 mm
Mfr # 206265 6/0,5
Zoro # G314384145
product price: $91.35
/ea
Free Shipping & Returns
Key Features
Color Ring
yellow
Maximum Cutting Depth Ap Max When Side Milling
10 mm
Tolerance Nominal Diameter
f8
Feed Fz For Copy Milling in Short-Chipping Aluminium
0.035 mm
Shank Tolerance
h6
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
206265 6/0,5
Zoro #
G314384145
UPC #
-
Country of Origin
Germany
Dimensions
Maximum Cutting Depth Ap Max When Side Milling
10 mm
Tolerance Nominal Diameter
f8
Maximum Cutting Depth Ap Max When Slot Milling From Solid
0.18 mm
Min. Cutting Depth
0.01 mm
Overall Length
80 mm
Milling Diameter
6 mm
Corner Radius
0.5 mm
Neck Dia.
5.7 mm
Length of Cut
10 mm
Shank Dia.
6 mm
Description
With strong core, special chip breaker recesses and large polished flutes. New generation of high performance end mills in the HPC machining range. Application: Especially for high speed machining in mould and tool making for copy milling. No. of teeth Z: 3 Helix angle: 45 degrees Shank: DIN 6535 HA to h6 Balance quality with shank: G 2.5 with HA No. of teeth Z: 3 Flute length Lc: 10 mm Corner radius R1: 0.5 mm Overhang length L1 incl. recess: 42 mm Recess Dia. D1: 5.7 mm Overall length L: 80 mm
