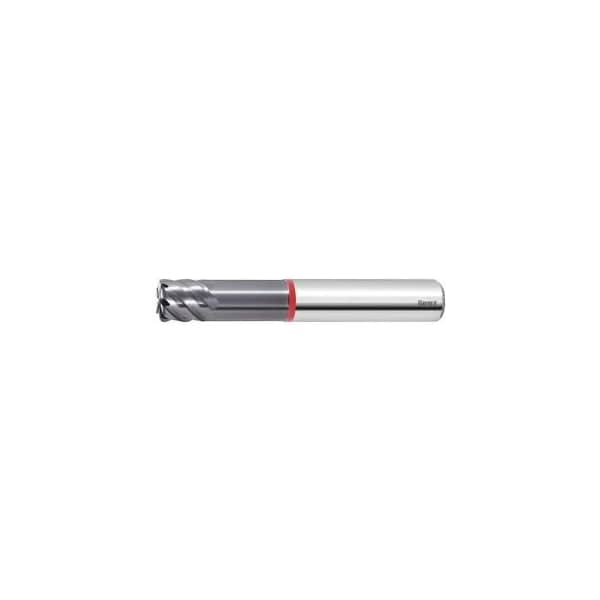

Solid Carbide Torus End Mill, for Hard Steels, TiAlN Coated, 10/1.0 mm
- Mfr # 206324 10/1,0
- Zoro # G814385239
product price:
$
302.99
/ea
Free Shipping & Returns
Key Features
Overall Length
70 mm
Milling Diameter
10 mm
Number of Flutes
6
End Mill Style
Corner Radius
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 206324 10/1,0
- Zoro #
- G814385239
- UPC #
- -
- Country of Origin
- Japan
- Number of Flutes
- 6
- End Mill Style
- Corner Radius
- Finish
- TiAlN
- End Mill Cutting Type
- HPC
- Type
- H
- Helix Angle
- 45 Degrees
- Overall Reach
- 30 mm
- End Mill Material
- Carbide
- Cutting Direction
- horizontal, oblique and vertical
- Coolant Through
- No
- Color Ring
- red
- Type of Product
- Torus cutter
- Feed Fz For Side Milling in Steel < 70 HRC
- 0.07 mm
- Shank Tolerance
- h6
- Correction Factor Fz
- 1.25
- Shank Type
- DIN 6535 HA to h6
- Feed Fz For Copy Milling in Steel < 70 HRC
- 0.07 mm
Description
GARANT Diabolo 70: Special solid carbide substrate with extremely high tensile strength combined with outstanding wear resistance for optimum process reliability. Newly developed nano-crystalline high-tech coating for hard milling up to 70 HRC. Very suitable for continuous use in tool and mould making. Tolerances: Corner radius: R1 = ±0.02 mm. Application: Due to the special hard geometry ideal for use on hardened materials from 60 HRC to 70 HRC. For profile milling as a finishing operation. Plunge milling only to shallow depths. No. of teeth Z: 6 Helix angle: 45 degrees Shank: DIN 6535 HA to h6 No. of teeth Z: 6 Flute length Lc: 10 mm Corner radius R1: 1 mm Overhang length L1 incl. recess: 30 mm Recess Dia. D1: 9.7 mm Overall length L: 70 mm
