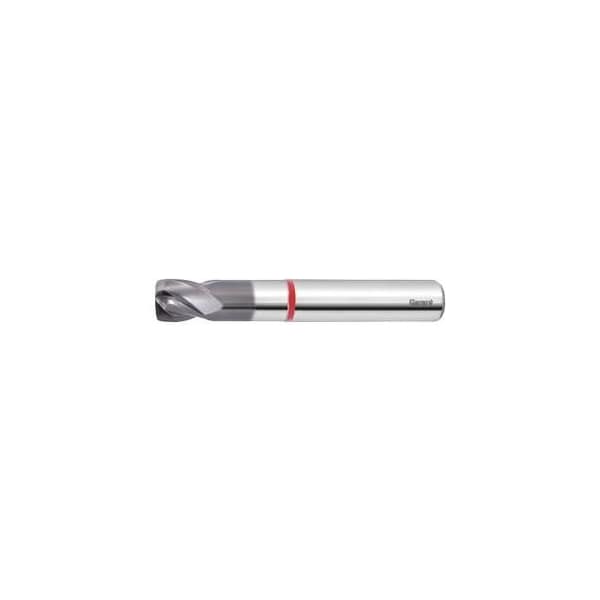

Solid Carbide Torus End Mill, for Hard Steels, TiAlN Coated, 2/0.2 mm
Mfr # 206323 2/0,2
Zoro # G614385132
product price: $117.99
/ea
Free Shipping & Returns
Key Features
End Mill Style
Corner Radius
Shank Tolerance
h6
Type of Product
Torus cutter
Feed Fz For Copy Milling in Steel < 70 HRC
0.005 mm
Overall Length
58 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
206323 2/0,2
Zoro #
G614385132
UPC #
-
Country of Origin
Japan
Dimensions
Overall Length
58 mm
Maximum Cutting Depth Ap Max When Side Milling
2 mm
Tolerance Nominal Diameter
0 / -0.02
Length of Cut
2 mm
Corner Radius
0.2 mm
Shank Dia.
6 mm
Neck Dia.
1.9 mm
Min. Cutting Depth
0.01 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
0.1 mm
Milling Diameter
2 mm
Description
GARANT Diabolo 70: Special solid carbide substrate with extremely high tensile strength combined with outstanding wear resistance for optimum process reliability. Newly developed nano-crystalline high-tech coating for hard milling up to 70 HRC. Very suitable for continuous use in tool and mould making. Sizes 2 5: Recess angle a = 15 Deg. Tolerances: Corner radius: R1 = ±0.01 mm. Application: Due to the special hard geometry ideal for use on hardened materials from 60 HRC to 70 HRC. No. of teeth Z: 4 Helix angle: 30 degrees Shank: DIN 6535 HA to h6 No. of teeth Z: 4 Flute length Lc: 2 mm Corner radius R1: 0.2 mm Overhang length L1 incl. recess: 10 mm Recess Dia. D1: 1.9 mm Overall length L: 58 mm
