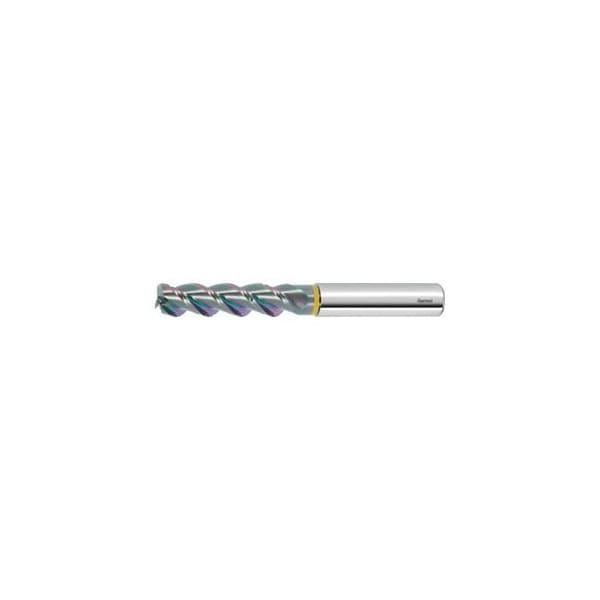

Solid Carbide TPC Torus End Mill, for Aluminum, DLC Coated, 20/2.0 mm
Mfr # 206211 20/2,0
Zoro # G314383056
product price: $505.99
/ea
Free Shipping & Returns
Key Features
Coolant Through
No
End Mill Cutting Type
TPC
Neck Dia.
19 mm
Milling Diameter
20 mm
Overall Reach
100 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
206211 20/2,0
Zoro #
G314383056
UPC #
-
Country of Origin
Germany
Dimensions
Neck Dia.
19 mm
Milling Diameter
20 mm
Shank Dia.
20 mm
Corner Radius
2 mm
Cutting Width Ae for Milling Operation
0.12×D
Overall Length
154 mm
Length of Cut
82 mm
Tolerance Nominal Diameter
h6
Maximum Cutting Depth Ap Max When Side Milling
82 mm
Min. Cutting Depth
0.01 mm
Average Chip Thickness Hmax for Tpc Milling In Short-Chipping Aluminium
0.125 mm
Description
Eccentric relief ground, additionally polish ground in the flutes for outstanding chip evacuation in long-chipping aluminium workpieces. With double chip-breaker for exemplary chip formation. With the latest generation of DLC coating sp2. Application: Especially for MTC Multi Task Cutting use on the new generation of turning / milling Centers. Note: ae max = 0.12xD for TPC machining. hmax: The values stated in the table are maximum values. No. of teeth Z: 3 Helix angle: 45 degrees Shank: DIN 6535 HB to h6 Balance quality with shank: G 2.5 with HB No. of teeth Z: 3 Flute length Lc: 82 mm Corner radius R1: 2 mm Overhang length L1 incl. recess: 100 mm Recess Dia. D1: 19 mm Overall length L: 154 mm
