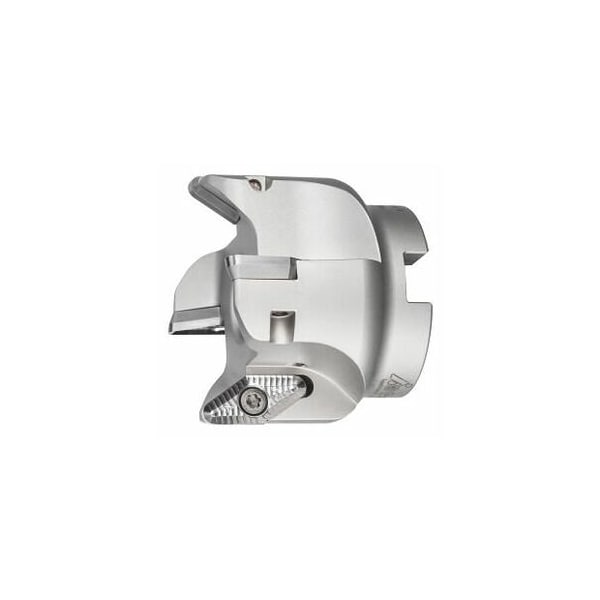

Square Plunge Milling Cutter, with Bore, for VCG. Inserts, 66mm Diameter, 4 Inserts
Mfr # 211806 66/4
Zoro # G716121355
product price: $544.99
/ea
Free Shipping & Returns
Key Features
Number of Teeth
4
Cutting Angle
90°
Insert Screw
219800 (20IP; 5.7 Nm)
Overall Length
55 mm
Cutting Dia.
66 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
211806 66/4
Zoro #
G716121355
UPC #
-
Country of Origin
Italy
Dimensions
Overall Length
55 mm
Cutting Dia.
66 mm
Mounting Bore Dia.
27 mm
Ramping Length for αmax
56.34 mm
Diameter 3
60 mm
Details
Number of Teeth
4
Cutting Angle
90°
Insert Screw
219800 (20IP; 5.7 Nm)
Item
Plunge mill
Coolant Through
Yes
Circular interpolation milling ap
10 mm
Circular Interpolation Milling - Dmax
130 mm
Ramping Angle
3.05°
Fz Helix
0.8
Overhang
55 mm
Axial Rake Angle
0°
Dia/No. of Cutting Edges
66 mm/4
Machining Strategy
MTC
Circular Interpolation Milling - Dmin
126 mm
Tool Exchange
PowerCard
Shank Type
with bore
Description
Version: Greater tool stiffness by elimination of twist between indexable insert and insert seat. Note: Use GARANT torque screwdriver TQ No. 211750 size 5.7 with bit No. 674252 size 20IP. Tool exchange: PowerCardD3: 60 mm Overall length Ltot: 55 mm Mounting bore : 27 mm Circular interpolation millingDmin: 126 mm Circular interpolation millingDmax: 130 mm Circular interpolation milling ap: 10 mm
