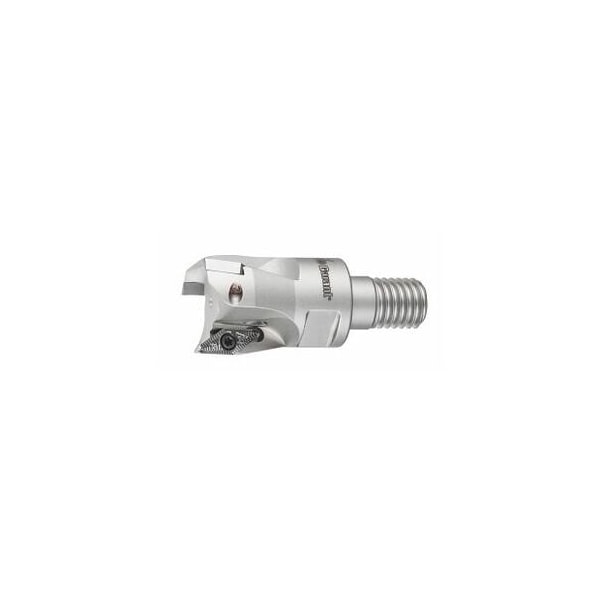

Square Plunge Milling Cutter, with Threaded Shank, for VDGT. Inserts, 25mm Diameter, 3 Inserts
Mfr # 211851 25/3
Zoro # G316121335
product price:Â
$
359.99
/ea
Free Shipping & Returns
Key Features
Cutting Angle
90°
Insert Screw
219801 (7IP; 0.9 Nm)
Cutting Dia.
25 mm
Number of Teeth
3
Overall Length
35 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 211851 25/3
- Zoro #
- G316121335
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 25 mm
- Overall Length
- 35 mm
- Diameter 2
- 20.7 mm
- Diameter 3
- 23 mm
- Ramping Length for αmax
- 21.4 mm
- Diameter 1
- 12.5 mm
Details
- Item
- Plunge mill
- Cutting Angle
- 90°
- Insert Screw
- 219801 (7IP; 0.9 Nm)
- Number of Teeth
- 3
- Ramping Angle
- 4.01°
- Machining Strategy
- MTC
- Mounting Thread
- M12
- Axial Rake Angle
- 0°
- Dia/No. of Cutting Edges
- 25 mm/3
- Circular Interpolation Milling - Dmax
- 48 mm
- Shank Type
- with threaded shank
- Circular interpolation milling ap
- 3.5 mm
- Coolant Through
- Yes
- Overhang
- 35 mm
- Tool Exchange
- PowerCard
- Circular Interpolation Milling - Dmin
- 48 mm
- Fz Helix
- 0.8
Description
Version: Greater tool stiffness by elimination of twist between indexable insert and insert seat. Can be extended as required using the threaded connection. Note: Use GARANT torque screwdriver TQ No. 211750 size 0.9 with bit No. 674252 size 7IP. Tool exchange: PowerCardD3: 23 mmD1 h6: 12.5 mmD2: 20.7 mm Overall length Ltot: 35 mm Mounting thread M: M12 Circular interpolation millingDmin: 48 mm
