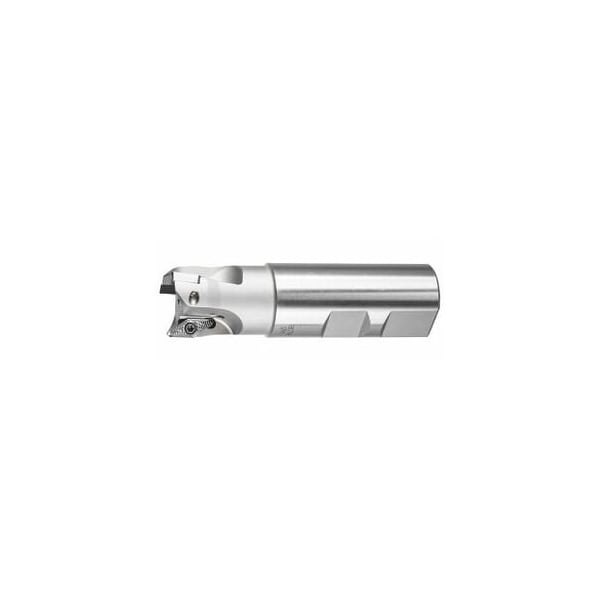

Square Plunge Milling Cutter, with Weldon Flat, for VDGT. Inserts, 25mm Diameter, 3 Inserts
Mfr # 211847 25/3
Zoro # G216121459
product price: $352.99
/ea
Free Shipping & Returns
Key Features
Insert Screw
219801 (7IP; 0.9 Nm)
Cutting Dia.
25 mm
Number of Teeth
3
Shank Dia.
25 mm
Overall Length
90 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
211847 25/3
Zoro #
G216121459
UPC #
-
Country of Origin
Italy
Dimensions
Cutting Dia.
25 mm
Shank Dia.
25 mm
Overall Length
90 mm
Diameter 3
23 mm
Ramping Length for αmax
21.4 mm
Details
Item
Plunge mill
Insert Screw
219801 (7IP; 0.9 Nm)
Number of Teeth
3
Cutting Angle
90°
Axial Rake Angle
0°
Circular Interpolation Milling - Dmax
48 mm
Fz Helix
0.8
Coolant Through
Yes
Circular interpolation milling ap
3.5 mm
Machining Strategy
MTC
Dia/No. of Cutting Edges
25 mm/3
Circular Interpolation Milling - Dmin
48 mm
Shank Type
Weldon shank
Tool Exchange
PowerCard
Ramping Angle
4.01°
Overhang
35 mm
Description
Version: Greater tool stiffness by elimination of twist between indexable insert and insert seat. Note: Use GARANT torque screwdriver TQ No. 211750 size 0.9 with bit No. 674252 size 7IP. Tool exchange: PowerCard Overhang L1: 35 mm Overall length Ltot: 90 mm ShankDs h6: 25 mm Circular interpolation millingDmin: 48 mm Circular interpolation millingDmax: 48 mm Circular interpolation milling ap: 3.5 mm
