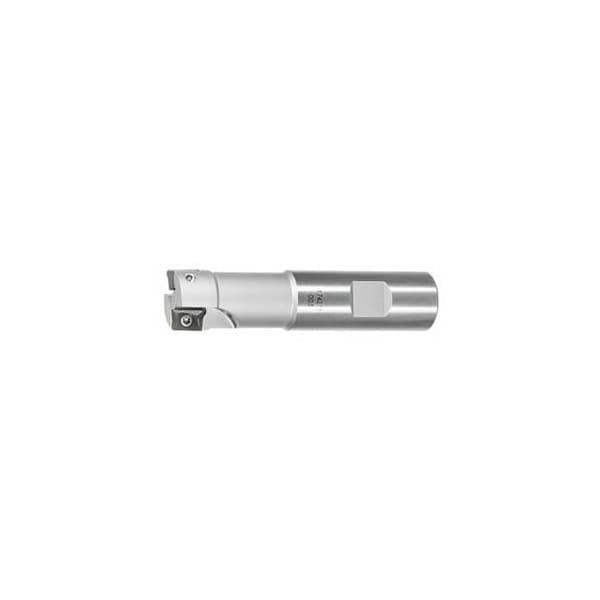

Square Shoulder Mill, with Weldon Flat, 20mm Diameter, 2 Inserts
Mfr # 215800 20/2
Zoro # G516121449
product price:Â $258.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
20 mm
Overall Length
90 mm
Insert Screw
219814 (8IP; 1.2 Nm)
Cutting Angle
90°
Shank Dia.
20 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 215800 20/2
- Zoro #
- G516121449
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 20 mm
- Overall Length
- 90 mm
- Shank Dia.
- 20 mm
- Ramping Length for αmax
- 14.85 mm
- Diameter 3
- 17 mm
Details
- Item
- End / face mill
- Insert Screw
- 219814 (8IP; 1.2 Nm)
- Cutting Angle
- 90°
- Ramping Angle
- 0.96°
- Fz Helix
- 0.5
- Dia/No. of Cutting Edges
- 20 mm/2
- Shank Type
- Weldon shank
- Circular Interpolation Milling - Dmin
- 37 mm
- Overhang
- 40 mm
- Axial Rake Angle
- 3°
- Coolant Through
- Yes
- Circular Interpolation Milling - Dmax
- 38 mm
- Number of Teeth
- 2
- Tool Exchange
- PowerCard
Description
Application: Universal application in all materials. - Angle and slot milling- milling pockets- circular milling- bore milling- peripheral milling. Note: Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. - Change the insert screws after longer use of the indexable inserts. Ensure the insert screws are well greased before use e.g. with copper paste. Cutting edgeDC: 20 mm Number of cutting edges Z: 2 Overhang L1: 40 mm Overall length Ltot: 90 mm ShankDs h6: 20 mm Circular interpolation millingDmin: 37 mm
