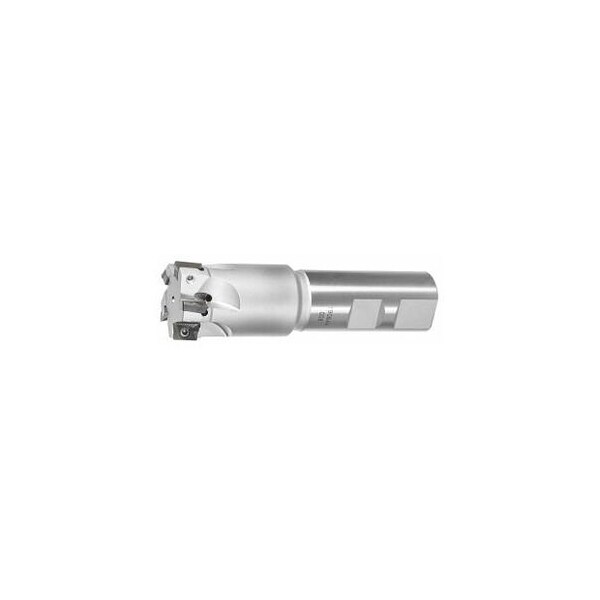

Square Shoulder Mill, with Weldon Flat, 32mm Diameter, 5 Inserts
Mfr # 215800 32/5
Zoro # G716121331
product price:Â $484.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
32 mm
Overall Length
110 mm
Cutting Angle
90°
Insert Screw
219814 (8IP; 1.2 Nm)
Shank Dia.
25 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 215800 32/5
- Zoro #
- G716121331
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 32 mm
- Overall Length
- 110 mm
- Shank Dia.
- 25 mm
- Diameter 3
- 29 mm
- Ramping Length for αmax
- 26.85 mm
Details
- Item
- End / face mill
- Cutting Angle
- 90°
- Insert Screw
- 219814 (8IP; 1.2 Nm)
- Number of Teeth
- 5
- Dia/No. of Cutting Edges
- 32 mm/5
- Tool Exchange
- PowerCard
- Coolant Through
- Yes
- Axial Rake Angle
- 3°
- Circular Interpolation Milling - Dmin
- 61 mm
- Fz Helix
- 0.5
- Ramping Angle
- 0.53°
- Overhang
- 54 mm
- Shank Type
- Weldon shank
- Circular Interpolation Milling - Dmax
- 62 mm
Description
Application: Universal application in all materials. - Angle and slot milling- milling pockets- circular milling- bore milling- peripheral milling. Note: Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. - Change the insert screws after longer use of the indexable inserts. Ensure the insert screws are well greased before use e.g. with copper paste. Cutting edgeDC: 32 mm Number of cutting edges Z: 5 Overhang L1: 54 mm Overall length Ltot: 110 mm ShankDs h6: 25 mm Circular interpolation millingDmin: 61 mm
