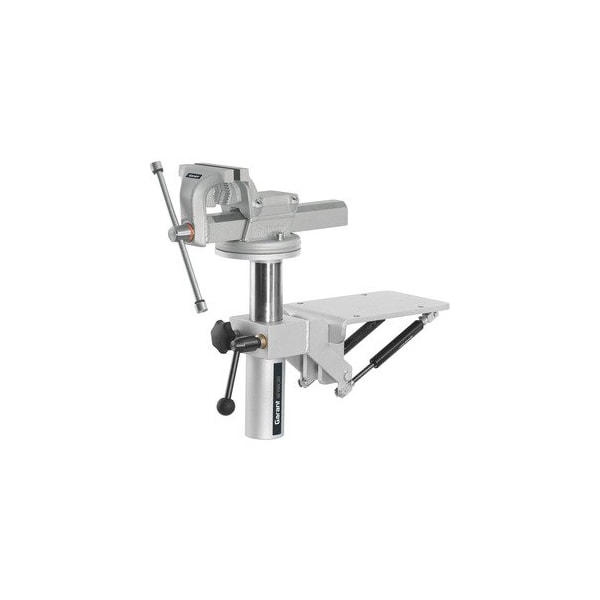

Swing away mounting and height adjuster with vise- vise jaw width: 120mm

Sturdy and very strong forged parts / steel design. Very smooth-running and precise guidance due to CNC-machined components. Extremely strong clamping by the special locking devise. Quicker clamping in any desired position by means of the safety clamping lever. Safety function: The vise can be swung down to the correct lower position only when the fixing pin is engaged in the notch on the lift tube. Advantage: - The vise- in conjunction with the height adjuster can be rotated through 360°- without the use of an additional swivel base. - The vise can be swung away under the bench to provide a clear working area. - Installation in a lockable cupboard with a door allows the swing away mounting and height adjuster to be stowed away and protected against theft casing available on request. Application: For matching the height of the vise to the ergonomically ideal working height- to the nearest centimetre. Supplied with: Fasteners for attachment under the worktop. vise No. 967100 size 120. Colour: Silver-grey Height adjustment range: 132 mm Height retracted: 296 mm Weight: 27 kg
