Shop GARANT

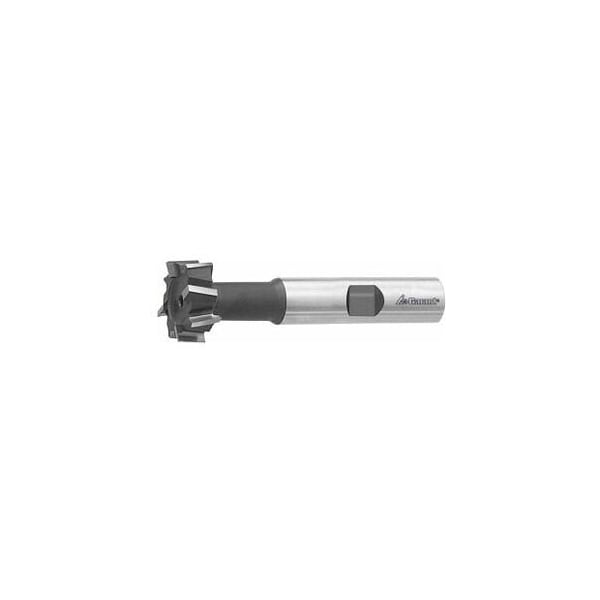

T-Slot Cutter, Uncoated, 18X8 mm

  • Mfr # 194030 18X8
  • Zoro # G714501111
product price:
$
90.99
/ea

Key Features

Cutter Dia.
18 mm
Overall Length
70 mm
Shank Dia.
12 mm
Neck Dia.
8 mm
Material
Cobalt High Speed Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
194030 18X8
Zoro #
G714501111
UPC #
-
Country of Origin
South Africa

Dimensions

Cutter Dia.
18 mm
Overall Length
70 mm
Shank Dia.
12 mm
Neck Dia.
8 mm
Maximum Cutting Depth Ap Max When Side Milling
8 mm
Length of Cut
8 mm
Tolerance Nominal Diameter
d11
Min. Cutting Depth
0.01 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
8 mm

Details

Material
Cobalt High Speed Steel
Finish
Uncoated
Corner Chamfer Angle
90 Degrees
Correction Factor Fz
1.25
Number of Effective Inserts
3
For T-Slots Din 650
10 mm
Helix Angle
15 Degrees
Number of Flutes
6
Style
Square
Shank
DIN 1835 B to h6
Shank Tolerance
h6
Type of Product
Slot milling cutter
Coolant Through
no
Milling profile
staggered teeth
Feed Fz in Steel < 750 N/mm2
0.06 mm
Cutting Direction
horizontal
Color Ring
without
Feed Fz in Steel < 750 N/mm2
0.06 mm

Description

The mill cuts on all three sides. Due to alternate set teeth staggered high cutting performance is achieved. Note: For milling T-slots to DIN 650 into machine tables on jigs and fixtures.
