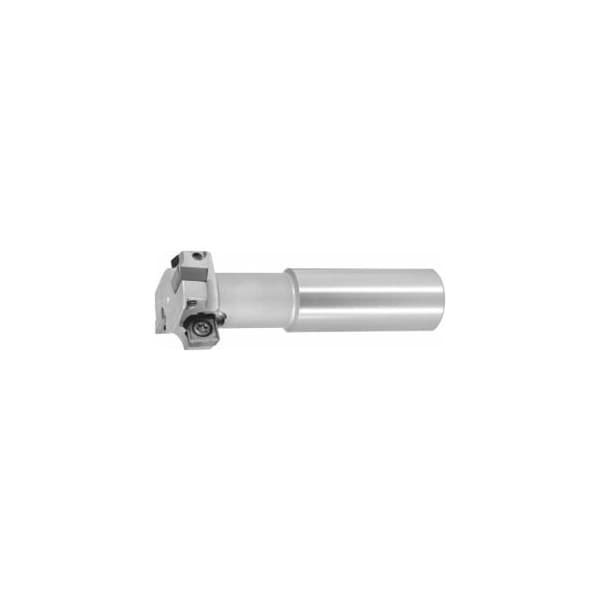

T-Slot Cutter, with Weldon Flat, 25mm Diameter, 2 Effective Teeth
Mfr # 218300 25/2
Zoro # G216121497
product price: $509.99
/ea
Free Shipping & Returns
Key Features
Shank Dia.
16 mm
Overall Length
82 mm
Coolant Through
Yes
Number of Effective Inserts
2
Collar Dia.
13 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
218300 25/2
Zoro #
G216121497
UPC #
-
Country of Origin
Germany
Dimensions
Shank Dia.
16 mm
Overall Length
82 mm
Collar Dia.
13 mm
Slot Depth
14 mm
Slot Depth ap
11 mm
Cutting Dia.
25 mm
Details
Item
Slot milling cutter
Coolant Through
Yes
Number of Effective Inserts
2
Tool Exchange
PowerCard
Insert Screw
219840 (8IP; 1.2 Nm)
Number of Indexable Inserts
4
Overhang
31 mm
Shank Type
Weldon shank
Dia/Effective Teeth
25 mm/2
Corner Chamfer Angle
90°
Description
Version: End mill with clamping face and internal coolant supply. Deeply recessed at the cutting area to allow working in very deep slots. Anti-corrosion surface treatment. Application: For slots to DIN 650. Note: Coolant feed via the internal coolant supply is preferable in order to achieve optimum chip clearance. Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. Tool exchange: PowerCard Number of effective inserts Zeff: 2 Number of indexable inserts: 4 Slot depth ap: 11 mm Collard1: 13 mm Overhang L1: 31 mm Overall length Ltot: 82 mm
