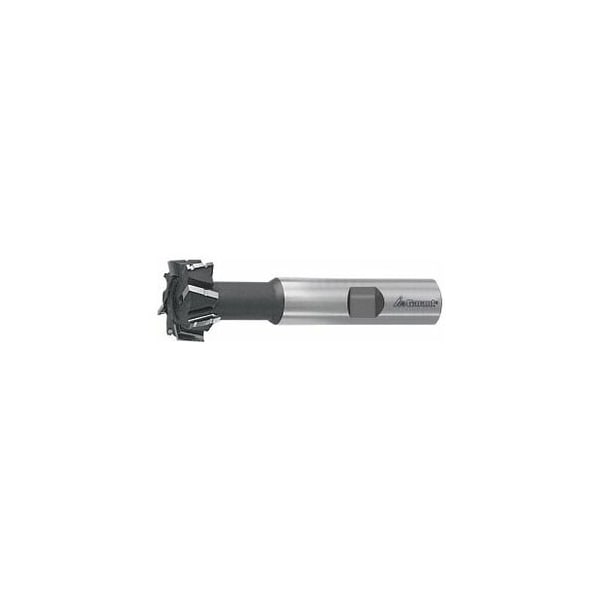

T-slot Semi-Roughing Cutter, Uncoated, 21X9 mm

  • Mfr # 194050 21X9

  • Zoro # G514501151

product price:  $109.99
/ea
Free Shipping & Returns

Key Features

Cutter Dia.
21 mm
Overall Length
74 mm
Shank Dia.
12 mm
Neck Dia.
10 mm
Material
Cobalt High Speed Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
194050 21X9
Zoro #
G514501151
UPC #
-
Country of Origin
South Africa

Dimensions

Cutter Dia.
21 mm
Overall Length
74 mm
Shank Dia.
12 mm
Neck Dia.
10 mm
Min. Cutting Depth
0.01 mm
Tolerance Nominal Diameter
d11
Maximum Cutting Depth Ap Max When Side Milling
9 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
9 mm
Length of Cut
9 mm

Details

Material
Cobalt High Speed Steel
Finish
uncoated
Corner Chamfer Angle
90 Degrees
Milling profile
staggered teeth
Feed Fz in Steel < 750 N/mm2
0.08 mm
Number of Effective Inserts
4
Type of Product
Slot milling cutter
Shank Tolerance
h6
For T-Slots Din 650
12 mm
Color Ring
without
Coolant Through
no
Correction Factor Fz
1.25
Number of Flutes
8
Style
Square
Shank
DIN 1835 B to h6
Cutting Direction
horizontal
Helix Angle
15 Degrees
Feed Fz in Steel < 750 N/mm2
0.08 mm

Description

Cuts on all three sides. Alternate set teeth with ground chip breaker on flutes. Note: For milling T-slots to DIN 650.
