Tap, 1"-11, G, 6 Flutes, TiAlN
Mfr # 137750 G1
Zoro # G714424250
product price: $544.99
/ea
Free Shipping & Returns
Key Features
Tap Thread Type
G
Number of Flutes
6
Tap Finish
TiAlN
Standards
DIN 5156
Application
up to 2.5×D for blind holes
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
137750 G1
Zoro #
G714424250
UPC #
-
Country of Origin
Germany
Dimensions
Tap Thread Size
1"-11
Shank Dia.
25 mm
Overall Length
160
Details
Item
Tap
Tap Thread Type
G
Number of Flutes
6
Tap Finish
TiAlN
Standards
DIN 5156
Application
up to 2.5×D for blind holes
Tap Material
HSS E PM
Description

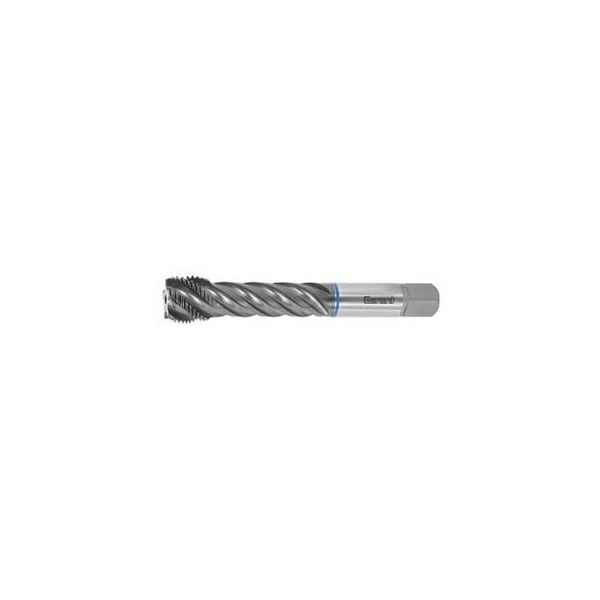

GARANT Master Tap INOX: High-performance tap, specially developed for good process reliability in stainless and acid-resistant steels and duplex materials. The 45 Deg helix angle of the chip flutes facilitates chip formation especially in ductile austenitic CrNi steels. HSS-E-PM tool material for maximum wear resistance The latest generation of TiALN multi-layer coating Parameterized flute geometry for optimum chip formation and torsional rigidity Application: For Whitworth parallel pipe threads DIN-ISO 228/1 threads that do not form a seal within the connection. Tool material: HSS E PM Threads per inch: 11 Thread Dia. 33.25 mm Overall length L: 160 mm Shank Dia. Ds: 25 mm Shank square: 20 mm Tapping hole Dia. 30.75 mm
