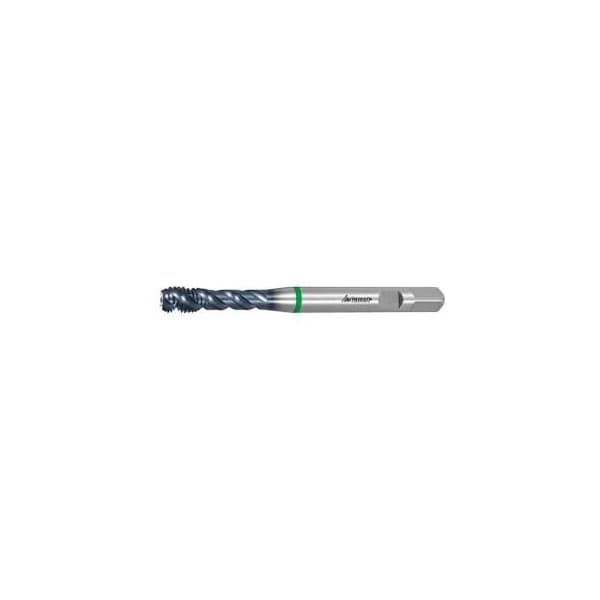

Tap, 3/8"-19, G, 4 Flutes, TiAlN
Mfr # 137813 G3/8
Zoro # G214423760
product price:Â
$
232.79
/ea
Free Shipping & Returns
Key Features
Tap Thread Type
G
Number of Flutes
4
Tap Finish
TiAlN
Overall Length
100
Application
up to 3×D for blind holes
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 137813 G3/8
- Zoro #
- G214423760
- UPC #
- -
- Country of Origin
- Italy
- Item
- Tap
- Tap Thread Type
- G
- Number of Flutes
- 4
- Tap Finish
- TiAlN
- Application
- up to 3×D for blind holes
- Tap Material
- HSS E PM
Description
Sturdy version with right-hand helix and shank to DIN 1835-B. Special geometry for general-purpose use on machines with synchronized spindle drive. The tap is controlled by the synchronizing spindle of the machine. Special TiAlN-S coating for optimum tool life. For use with emulsion fat content minimum 8%. Form E lead chamfer: 1.5 2 turns for the deepest possible thread depths. Application: For Whitworth parallel pipe threads DIN-ISO 228/1 threads that do not form a seal within the connection. Note: For use on synchronized spindles, the GARANT quick-change tapping chuck No. 338100 338121 with minimum length adjustment MLA ensures very high process reliability. Tool material: HSS E PM Threads per inch: 19 Thread Dia. 16.66 mm Overall length L: 100 mm Shank Dia. Ds: 12 mm Shank square: 9 mm Tapping hole Dia. 15.25 mm
