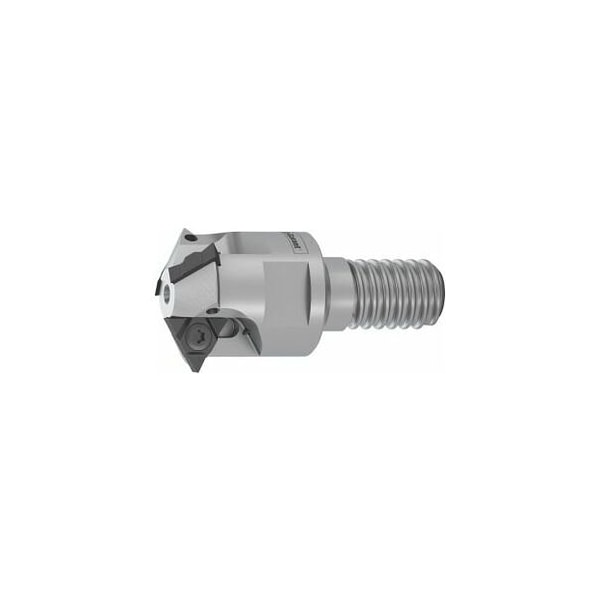

Thread Milling Head, with Threaded Shank, 17mm Diameter
Mfr # 218110 17
Zoro # G216115519
product price: $269.99
/ea
Free Shipping & Returns
Key Features
Overall Length
22.2 mm
Cutting Direction
left-hand and right-hand
Coolant Through
Yes
Insert Screw
279810 4 (TX8; 1.02 Nm)
Insert Size
11
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
218110 17
Zoro #
G216115519
UPC #
-
Country of Origin
Israel
Dimensions
Overall Length
22.2 mm
Insert Size
11
Collar Dia.
13 mm
Effective Diameter
16.75 mm
Details
Cutting Direction
left-hand and right-hand
Item
thread milling cutter
Coolant Through
Yes
Insert Screw
279810 4 (TX8; 1.02 Nm)
For Hole Type
Blind hole and for through holes
Number of Teeth
1
Shank Type
with threaded shank
L2
5.2 mm
Dia
17 mm
Number of Clamping Slots
1
Overhang
17 mm
Description
Application: - For large and deep threads. - For parallel internal threads- other inserts and carriers available on request. - For threads in through holes and blind holes. - For universal use on left-hand and right-hand threads. - Low cutting pressure. Through-coolant: yes Insert size: 11 Number of cutting edges Z: 1 Mounting thread: M8 EffectiveD: 16.75 mm CollarD1: 13 mm Overall length Ltot: 22.2 mm
