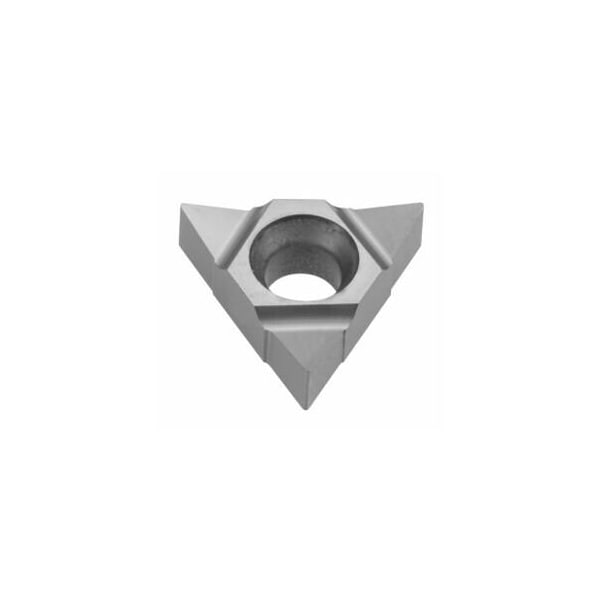

Thread Milling Insert, 11-7 TPI
Mfr # 218131 11-7
Zoro # G516121487
product price:Â
$
30.79
/ea
Key Features
Insert Size
11 mm
Grade
HB7720
Cutting Direction
Right Hand, left-hand
Insert Material
Carbide
Coating
TiCN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 218131 11-7
- Zoro #
- G516121487
- UPC #
- -
- Country of Origin
- Israel
Dimensions
- Insert Size
- 11 mm
Details
- Item
- Cutter insert for milling
- Grade
- HB7720
- Cutting Direction
- Right Hand, left-hand
- Insert Material
- Carbide
- Coating
- TiCN
- Flank Angle
- 55°
- For Threads
- 7/8-11; 3/4-10; 7/8-9; 1-8
- Teeth per Inch
- 11-7
- Max. Thread Pitch
- 3.628 mm
- Full Profile
- No
- Number of Teeth
- 1
- Thread Pitch
- 2,309 mm
- Thread profile
- Partial profile
- Thread per Inch
- 7/11/2025
Description
Version: Insert size 11. Application: For internal and external threads with 55 deg. flank to standard BS 84: 1956- DIN 259- ISO 228/1: 1982. Cutting direction: right-hand and left-hand Feed fz in INOX < 900 N/mm2: 0.03 mm
