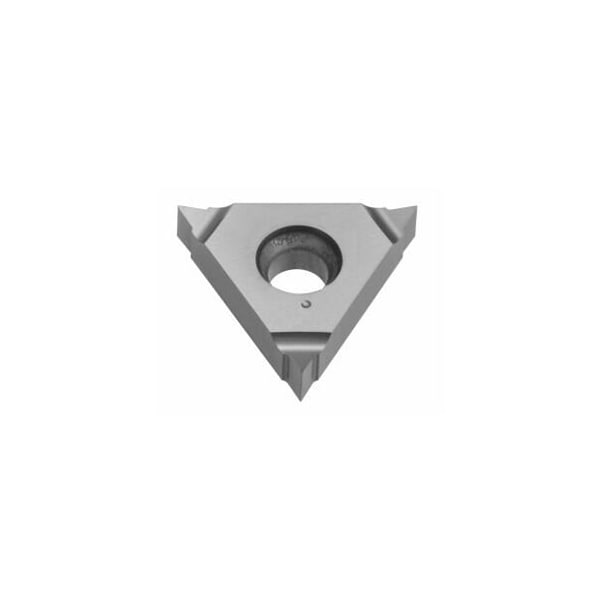

Thread Milling Insert for Internal Threads, 60 Degree, 2, 5-3, 5mm Pitch
Mfr # 218124 2,5-3,5
Zoro # G416121488
product price:Â
$
33.15
/ea
Key Features
Insert Size
16 mm
Grade
HB7720
Cutting Direction
right-hand and left-hand
Insert Material
Carbide
Coating
TiCN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 218124 2,5-3,5
- Zoro #
- G416121488
- UPC #
- -
- Country of Origin
- Israel
Dimensions
- Insert Size
- 16 mm
Details
- Item
- Cutter insert for milling
- Pitch
- 2.5-3.5 mm
- Grade
- HB7720
- Cutting Direction
- right-hand and left-hand
- Insert Material
- Carbide
- Coating
- TiCN
- Full Profile
- No
- Thread Pitch
- 2.5 - 3.5 mm
- Max. Thread Pitch
- 3,5 mm
- Flank Angle
- 60°
- Number of Teeth
- 1
- For Threads
- M40x2.5; M41x3; M42x3.5
- Thread profile
- Partial profile
Description
Version: Insert size 16. Application: For metric internal threads with 60 deg. flank to DIN / ISO R 262 DIN 13. Cutting direction: right-hand and left-hand Feed fz in INOX < 900 N/mm2: 0.03 mm
