Shop GARANT

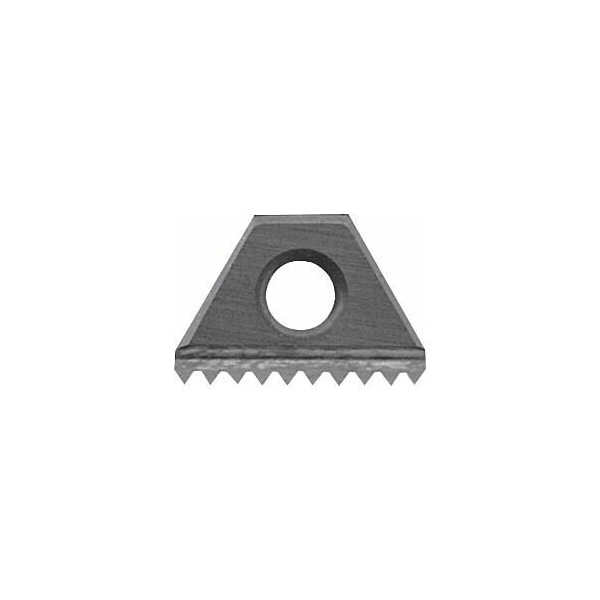

Thread Milling Insert for Internal/External Threads, 55 Degree, 11TPI

  • Mfr # 218022 11

  • Zoro # G616121493

product price:  $84.25
/ea

Key Features

Insert Size
16 mm
Grade
HB7720
Cutting Direction
right-hand and left-hand
Insert Material
Carbide
Thread Pitch
2,309 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
218022 11
Zoro #
G616121493
UPC #
-
Country of Origin
Israel

Dimensions

Insert Size
16 mm

Details

Item
Cutter insert for milling
Grade
HB7720
Cutting Direction
right-hand and left-hand
Insert Material
Carbide
Thread Pitch
2,309 mm
Full Profile
Yes
Thread per Inch
11
Thread profile
Full profile
Number of Teeth
6
Correction Factor
2.5
Flank Angle
55°
Teeth per Inch
11

Description

Version: Sturdy inserts. Two usable edges. - Wide range of applications thanks to universal chip breaker geometry. - High repetition accuracy. Application: For internal and external threads 55 deg. to standard BS 84: 1956- DIN 259- ISO 228/1:1982. Tolerance medium- class A. Feed fz in INOX < 900 N/mm2: 0.05 mm
