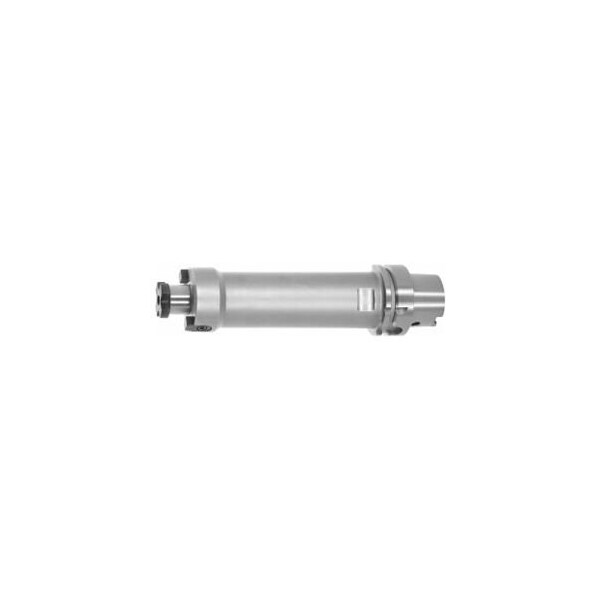

Vibration-Damped Face Mill Arbor, HSK-A 100, Projection: 200, Clamping Diameter: 27mm
- Mfr # 306708 27
- Zoro # G014773522
product price:Â
$
1,188.99
/ea
Free Shipping & Returns
Key Features
Projection
200 mm
Dia.
58 mm
Concentricity
≤ 6 µm
Vibration
damped
Milling Mandrel Length
21 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 306708 27
- Zoro #
- G014773522
- UPC #
- -
- Country of Origin
- Spain
- Projection
- 200 mm
- Concentricity
- ≤ 6 µm
- Vibration
- damped
- Shank Shape
- A
- Balance Quality
- G 6.3 at 8,000 rpm
- Item
- Milling head arbor
- Standards
- DIN 6357
- Machining Strategy
- HPC
Dimensions
- Dia.
- 58 mm
- Milling Mandrel Length
- 21 mm
- Taper Size
- HSK100A
Description
Taper shank, spigot, and all contact surfaces are ground at the collar. With Balluff/RFID chip bore. Increased collar contact surface. Vibration-Damped version, Arbor with vibration-damping core. Advantage: Significantly lower tendency to vibrate! Considerable increase in feed rate! Supplied with: Cutter lock screw and drive dog. Optional extras: Special coolant pipe wrench No. 309840, coolant pipe No. 309880. Note: Further sizes on request. Overhang dimension A: 200 mm Dia D2: 58 mm Milling mandrel length L4: 21 mm
