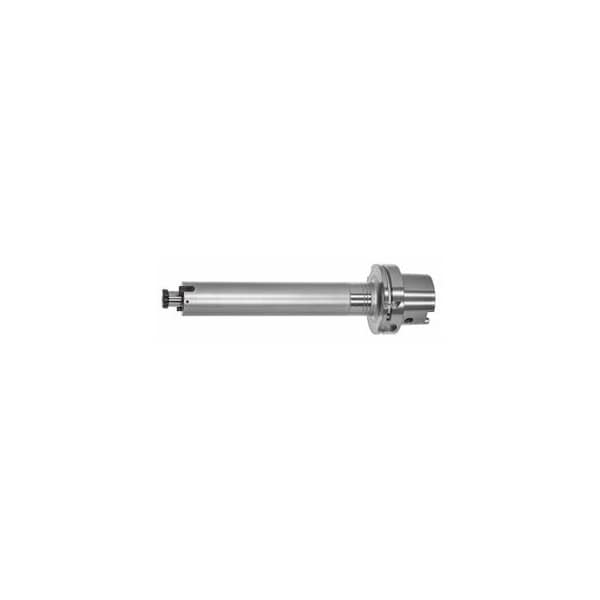

Vibration-Damped Face Mill Arbor, HSK-A 100, Projection: 300, Clamping Diameter: 32mm
- Mfr # 306715 32
- Zoro # G214773834
product price:Â
$
1,971.99
/ea
Free Shipping & Returns
Key Features
Dia.
78 mm
Vibration
damped
Shank Shape
A
Spigot Dia.
32 mm
Machining Strategy
HPC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 306715 32
- Zoro #
- G214773834
- UPC #
- -
- Country of Origin
- Spain
- Vibration
- damped
- Shank Shape
- A
- Machining Strategy
- HPC
- Balance Quality
- G 6.3 at 8,000 rpm
- Projection
- 300 mm
- Item
- Milling head arbor
- Concentricity
- ≤ 6 µm
- Standards
- DIN 6357
Dimensions
- Dia.
- 78 mm
- Spigot Dia.
- 32 mm
- Taper Size
- HSK100A
- Clamping Dia.
- 32 mm
- Milling Mandrel Length
- 24 mm
Description
Taper shank, spigot, and all contact surfaces are ground at the collar. With Balluff/RFID chip bore. Increased collar contact surface. Vibration-Damped version, Arbor with vibration-damping core. Advantage: Significantly lower tendency to vibrate. Considerable increase in feed rate. Supplied with: Cutter lock screw and drive dog. Optional extras: Special coolant pipe wrench No. 309840, coolant pipe No. 309880. Note: Further sizes on request. Overhang dimension A: 300 mm Dia D2: 78 mm Milling mandrel length L4: 24 mm
