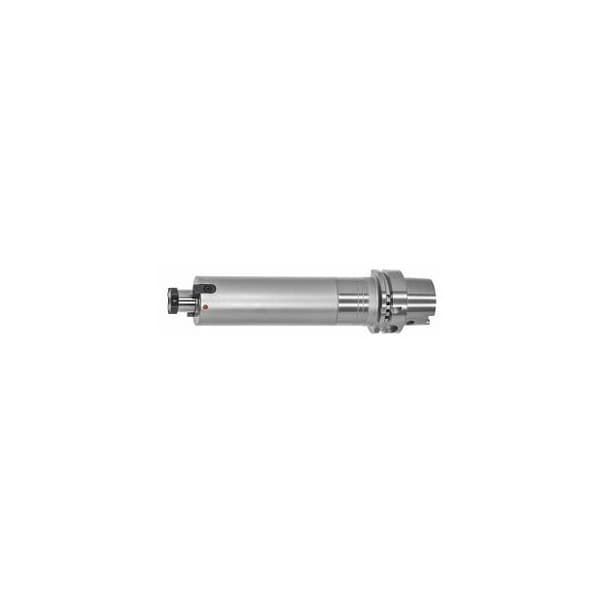

Vibration-Damped Face Mill Arbor, HSK-A 63, Projection: 200, Clamping Diameter: 16mm
- Mfr # 306712 16
- Zoro # G314773543
product price:Â
$
1,422.99
/ea
Free Shipping & Returns
Key Features
Shank Shape
A
Vibration
damped
Dia.
38 mm
Concentricity
≤ 6 µm
Machining Strategy
HPC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 306712 16
- Zoro #
- G314773543
- UPC #
- -
- Country of Origin
- Spain
- Shank Shape
- A
- Vibration
- damped
- Item
- Milling head arbor
- Concentricity
- ≤ 6 µm
- Machining Strategy
- HPC
- Balance Quality
- G 6.3 at 8,000 rpm
- Projection
- 200 mm
- Standards
- DIN 6357
Description
Taper shank, spigot, and all contact surfaces are ground at the collar. With Balluff/RFID chip bore. Increased collar contact surface. Vibration-Damped version, Arbor with vibration-damping core. Advantage: Significantly lower tendency to vibrate. Considerable increase in feed rate. Supplied with: Cutter lock screw and drive dog. Optional extras: Special coolant pipe wrench No. 309840, coolant pipe No. 309880. Note: Further sizes on request. Overhang dimension A: 200 mm Dia D2: 38 mm Milling mandrel length L4: 17 mm
