Shop GARANT

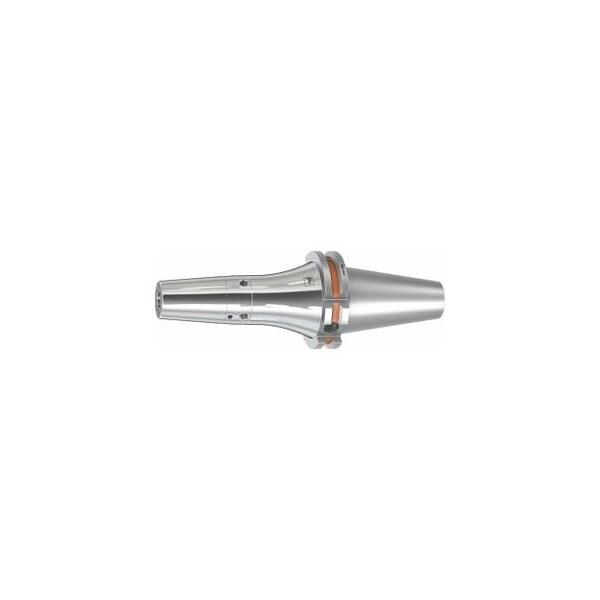

Vibration-Damped Shrink-fit Holder, SK 40, Projection: 120, Clamping Range: 10mm

  • Mfr # 302207 10

  • Zoro # G814774286

product price:
$
346.99
/ea
Free Shipping & Returns

Key Features

Taper Size
SK40
Projection
120 mm
Coolant Fed
Yes
Standards
ISO 7388-1
Balance Quality
G 2.5 at 25,000 rpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
302207 10
Zoro #
G814774286
UPC #
-
Country of Origin
Italy

Dimensions

Taper Size
SK40
External Dia.
32 mm
Dia.
50 mm
Clamping Dia.
10 mm

Details

Item
Shrink-fit chuck
Projection
120 mm
Coolant Fed
Yes
Standards
ISO 7388-1
Balance Quality
G 2.5 at 25,000 rpm
Cooling Channel Bore
lockable
Vibration
damped
Concentricity
≤ 3 µm
Shape
ADB

Description

High-temperature steel. Integrated length adjustment of the tools. For HSS and solid carbide tools. Shanks hard turned smooth cutting action!. With RFID / Balluffchip bore. With coolant channel bores and threads that can be sealed. With tapped holes on each side for balancing screws. Reinforced version/contour. Polished surface. Specially mounted carbide core in the Shrink-fit holder body. Advantage: Vibration-damping. Better workpiece surface finish. optimized tool life. Increased process reliability. Lower corrosion tendency due to polished surface. Application: For clamping tools with plain shank h6 shank tolerance. Suitable for inductive, contact and hot air shrink-fit units. Optional extras: Pull studs PS No. 308600 - 308800. PS wrenches No. 308820 - 308835. Shrink-fit holder extensions No. 302410 - 302419. Shrink-fit units, accessories No. 354210 - 354450. Balancing screws set No. 309906 size 180. Cooling channel bore: lockable Clamping Dia D1: 10 mm Overhang dimension A: 120 mm External Dia D: 32 mm Dia D2: 24 mm Dia D3: 50 mm L2: 65.9 mm
