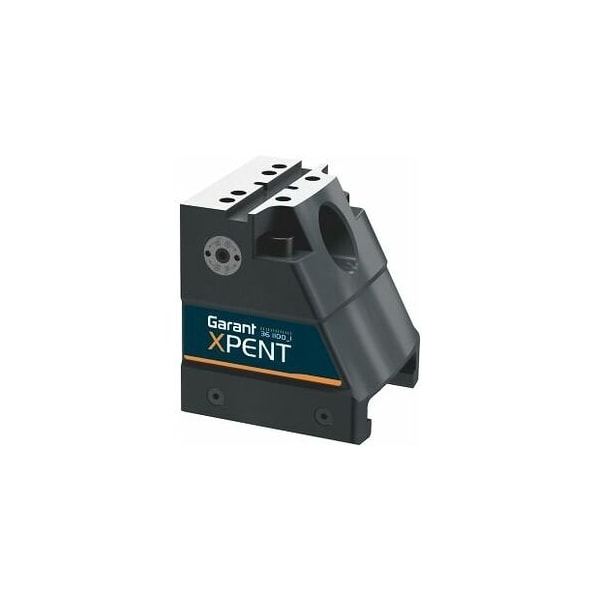

Xpent Fixed Clamping Module, for Type: 2
Mfr # 361105 2
Zoro # G814823465
product price:Â
$
1,707.99
/ea
Free Shipping & Returns
Key Features
Overall Height
174.5 mm
Overall Length
126 mm
Series
Xpent
Suitable For Colour Code
Xpent1-2
Overall Width
125 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 361105 2
- Zoro #
- G814823465
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Height
- 174.5 mm
- Overall Length
- 126 mm
- Overall Width
- 125 mm
Details
- Item
- Spare part clamp
- Series
- Xpent
- Suitable For Colour Code
- Xpent1-2
Description
All functional faces hardened and ground. The 5-axis vice has a modular design. The key components are the clamping modules No. 361105 361110, base rails No. 361115, spindle No. 361119, spindle extensions No. 361120 and the top jaws No. 361123 361137. Suitable for: Base rails No. 361115, spindle No. 361119 and top jaws No. 361123 361138. Optional extras: Hexagon screwdriver with T-handle No. 627424, size 5 and torque wrench No. 656050 size 120. Note: You will need a hexagon screwdriver bit type 0 = 8 AF, type 1, 1S+2 = 10 AF for the attachment screws. You will need a 5 AF screwdriver bit for spindle locking. Length L: 126 mm Width B: 125 mm Height H: 174.5 mm H1: 147.5 mm Weight: 11 kg suitable for color code: Xpent1-2
