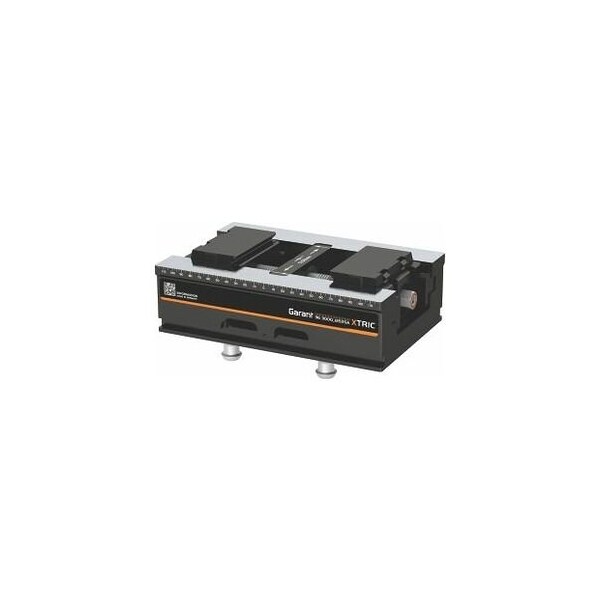

Xtric Centering Vise, Type: 125XSA

Very good accessibility and perfectly symmetrical. Fully hardened and precision milled on the underside. Clamps raw materials and finished parts with the least possible backstroke of the jaws / component. Central alignment delivers perfectly Centered clamping. The clamping range can be changed by reversing the jaws. Application: Perfect for 5-face machining. Centered clamping. Suitable for: Top jaws No. 363010 - 363045. Supplied with: Base body, spindle, spindle nuts and four clamping studs suitable for automation extension base No. 360164 XP80Z. Optional extras: Torque wrench No. 656050, socket No. 642229 13, assembly station No. 358595 80. Note: Suitable for the GARANT TurnTable automation system in combination with / for automation extension base No. 360164 XP80Z. Suitable top jaws No. 363010 - 363045 are not included in the scope of supply. Clamping situation S2 arises by reversing the jaws. Zero-point clamping system Weight: 10.6 kg L: 186 mm B: 125 mm Height H: 54 mm Reference dimension: 80 mm maximum torque: 132 Nm
