  9. Analog Multimeter, 7 Func., 19 Range

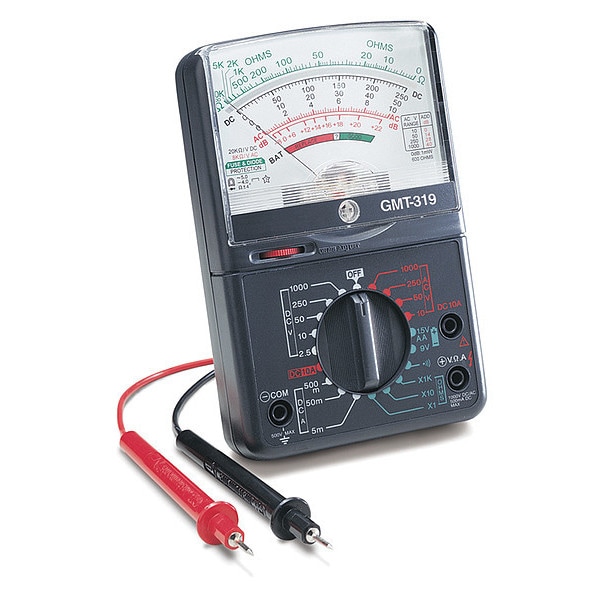

Gardner Bender Analog Multimeter, 7 Func., 19 Range GMT-319 - main

Analog Multimeter, 7 Func., 19 Range

  • Mfr # GMT-319

  • Zoro # G6926950

product price: $63.39
/ea

Key Features

Sensitivity
20,000 ohm/V DC, 8,000 ohm/V DC
Special Features
Replaceable Test Leads, Zero Ohms Adjustment Dial
Includes
Spare Fuse, Replaceable Test Leads
Overload Protector
Yes
Maximum Sound Level Measurement
62 dB
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GMT-319
Zoro #
G6926950
UPC #
032076073008
Country of Origin
China

Dimensions

Battery Size
AAA

Details

Item
Analog Multimeter,7 Func.,19 Range
Sensitivity
20,000 ohm/V DC, 8,000 ohm/V DC
Special Features
Replaceable Test Leads, Zero Ohms Adjustment Dial
Includes
Spare Fuse, Replaceable Test Leads
Overload Protector
Yes
Maximum Sound Level Measurement
62 dB
Maximum Operating Temperature
77 Degrees F
Minimum DC Current Measurement
5 mA
Parameters Measured
AC Voltage, DC Current, DC Voltage, Resistance
Minimum Operating Temperature
64 Degrees F
Minimum Sound Level Measurement
-8 dB
Maximum AC Voltage Measurement
1,000 V
Basic AC Voltage Accuracy
+/-5.00%
Maximum DC Current Measurement
500 mA
Resistance Measurement Accuracy
+/-4 Degrees arc of scale length
Minimum AC Voltage Measurement
10 V
Maximum DC Voltage Measurement
1,000 V
Minimum DC Voltage Measurement
2.5 V
Battery Voltage
1.5V DC
Basic DC Voltage Accuracy
+/-4.00%
Maximum Resistance Measurement
10 megaohm

Description

Analog Multimeter,7 Func.,19 Range, Resistance Measurement Accuracy +/-4 Degrees arc of scale length, Parameters Measured AC Voltage, DC Current, DC Voltage, Resistance, Basic AC Voltage Accuracy +/-5.00 Percent, Basic DC Voltage Accuracy +/-4.00 Percent, Minimum AC Voltage Measurement 10 V, Maximum AC Voltage Measurement 1,000 V, Minimum DC Voltage Measurement 2.5 V, Maximum DC Voltage Measurement 1,000 V, Minimum DC Current Measurement 5 mA, Maximum DC Current Measurement 500 mA

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
