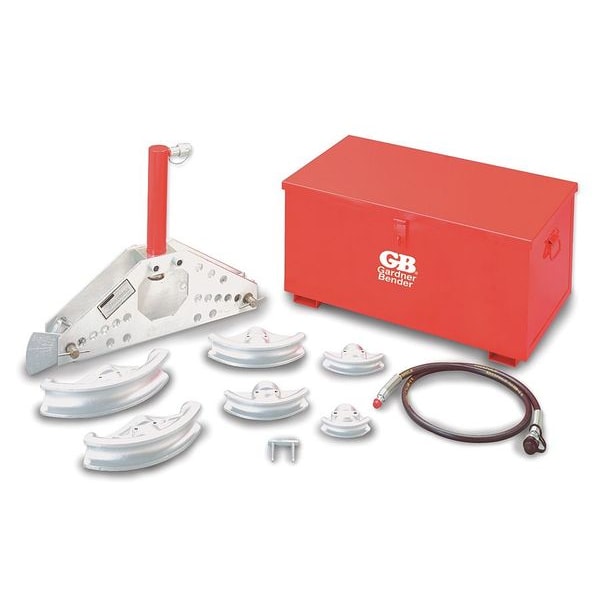

Hydraulic Pipe Bender, 8 Shoes, 1/2 to 2 in Size Range 3-5/16 to 9-1/2 in Bend Radius
- Mfr # B316S
- Zoro # G5910021
product price:Â
$
3,219.99
/ea
Zoro's best price: not eligible for any other offers or promotions
Key Features
Number of Shoes
8
Size Range (In.)
1/2 to 2
Bend Radius (In.)
3-5/16 to 9-1/2
Measuring Height (In.)
31 in
Measuring Length (In.)
18 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- B316S
- Zoro #
- G5910021
- UPC #
- 032076810979
- Country of Origin
- United States
- Item
- Hydraulic Pipe Bender
- Number of Shoes
- 8
- Material
- Aluminum
- Includes
- (2) Pivot Pins, (2) Pivot Shoes, 1/2, 3/4, 1, 1 1/4, 1 1/2 and 2 in Bending Shoes, 10 Ton Single-Acting Cylinder, Angle Gauge, Bender Frame, Metal Case, Shoe Lock Pin
- Max. Pressure (PSI)
- 10,000 psi
- Function
- Ability To Be Powered By Manual Or Electric Pumps, Ability To Produce Sweep Bends Where Several Bending Stages Are Necessary, Capability Of One-Shoe Bending For Elbows
- Product Type
- Hydraulic Pipe Bender
- Pressure Port
- 1 in - 8 UNC
- Features
- Produces Sweep Bends Where Several Bending Stages are Necessary, Optic Angle Gauge for Bend Progression
- Minimum Operating Pressure
- 10 Tonf
- Tool Weight
- 104 lb
- Compatible Pipe Material
- Steel
- Return Port
- 1 in - 8 UNC
- Power Source
- Hydraulic
- Maximum Operating Pressure
- 10,000 psi
- Standards
- RoHS Compliant
- Minimum Flow Rate
- 20 cu in/min
- Maximum Pipe Bend Angle
- 90 Degrees
- Pump Type Included
- No Pump
- Maximum Flow Rate
- 200 cu in/min
- Number of Shoes Included
- 8
- Power Source - TS Only
- Hydraulic
- Power Source - old
- Hydraulic
Dimensions
- Size Range (In.)
- 1/2 to 2
- Bend Radius (In.)
- 3-5/16 to 9-1/2
- Measuring Height (In.)
- 31 in
- Measuring Length (In.)
- 18 in
- Measuring Width (In.)
- 14 in
- Minimum Hose Size
- 6 ft
- Minimum Pipe Bend Radius
- 3 3/8 in
- Maximum Pipe Bend Radius
- 9 1/2 in
- Maximum Compatible Pipe Size
- 2 in
- Minimum Compatible Pipe Size
- 1/2 in
Description
Hydraulic Pipe Bender, Product Type Hydraulic Pipe Bender, Minimum Compatible Pipe Size 1/2 in, Maximum Compatible Pipe Size 2 in, Compatible Pipe Material Steel, Maximum Pipe Bend Angle 90 Degrees , Number of Shoes Included 8, Pressure Port 1 in - 8 UNC, Return Port 1 in - 8 UNC, Minimum Operating Pressure 10 Tonf, Maximum Operating Pressure 10,000 psi, Minimum Flow Rate 20 cu in/min, Maximum Flow Rate 200 cu in/min, Minimum Pipe Bend Radius 3 3/8 in, Maximum Pipe Bend Radius 9 1/2 in
