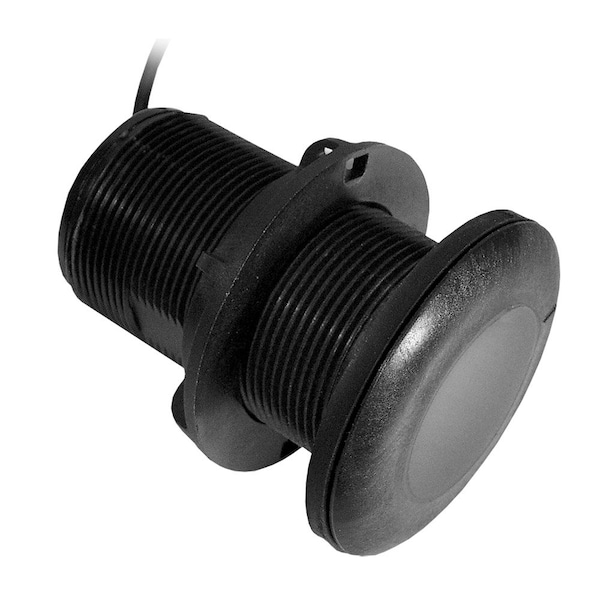

P19 Nylon 12° Tilt Transducer - 8-Pin
Mfr # 010-10218-21
Zoro # G203078803
product price: $199.99
/ea
Free Shipping & Returns
Key Features
Includes
Installation Instructions
For Use With
Material
Fiberglass, Plastic, Metal
Minimum Operating Frequency
77 kHz
Beamwidth Angle
45 Degrees
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 010-10218-21
- Zoro #
- G203078803
- UPC #
- 753759971748
- Country of Origin
- United States
Dimensions
- Beamwidth Angle
- 45 Degrees
Details
- Includes
- Installation Instructions
- For Use With
- Material
- Fiberglass, Plastic, Metal
- Minimum Operating Frequency
- 77 kHz
- Maximum Operating Frequency
- 200 kHz
- Maximum Power Consumption
- 500 W
- Item
- Transducer
- Mounting Type
- Thru-hull
Description
Tilted Element Thru-Hull
Minimize Your Drag
The P19 model have been the standard in low-profile models for many years. Their large sensitive ceramics allow deep echosounding up to 206M (700'). These nearly flush units minimize drag as only 5mm (2/10") of the housing extends outside of the hull. The plastic P19 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for moreaccurate depth readings.
Applications
Features
Minimize Your Drag
The P19 model have been the standard in low-profile models for many years. Their large sensitive ceramics allow deep echosounding up to 206M (700'). These nearly flush units minimize drag as only 5mm (2/10") of the housing extends outside of the hull. The plastic P19 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for moreaccurate depth readings.
Applications
- Cruising powerboats and sailboats
- Sailboats
Features
- Depth only or Depth and temperature
- Fixed 12° tilted versions for 8° to 15° hull deadrise
- Right angle cable exit offers low headroom and protection when transducer is stepped on
- Included rubber washer allows tightening of the hull nut to irregular hull surfaces
- Housings are ABYC H-27 compliant
- Optional temperature sensor
- Plastic housing
- Boat Size: Up to 9M (30')
