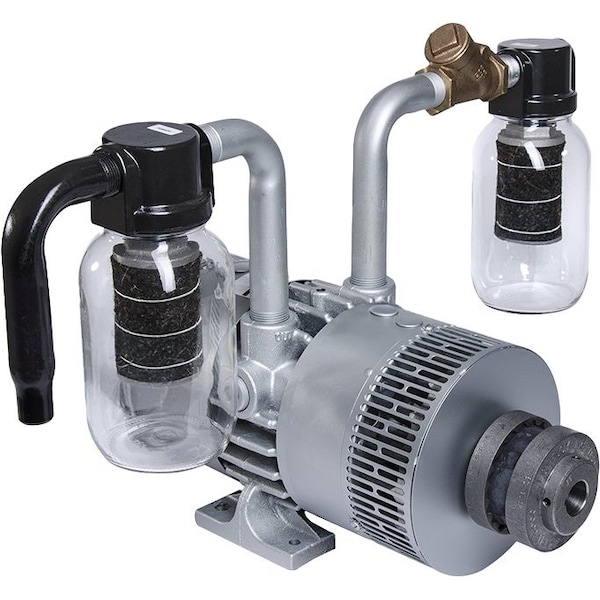

Gast 1/Skid Rotary Vane Pump - Sep Drive 6066-V103 - main

1/Skid Rotary Vane Pump - Sep Drive

  • Mfr # 6066-V103

  • Zoro # G0665108

product price: $2,825.99
/ea
Free Shipping & Returns

Key Features

Inlet Size
1 in
Outlet Size
1 in
Overall Length
16.22 in
Overall Width
16.69 in
Overall Height
17.05 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6066-V103
Zoro #
G0665108
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
1 in
Outlet Size
1 in
Overall Length
16.22 in
Overall Width
16.69 in
Overall Height
17.05 in

Details

Item
Vacuum Pump
Includes
Check Valve, Coupling, Filter, Muffler
Wattage
3.73 kW
Maximum Pressure
15 psi
Weight
92 lb
Maximum Pressure @ 50 Hz
15 psi
Maximum Speed
1,750 RPM
Free Air Flow Rate
45 cfm, 55 cfm
Maximum Operating Temperature
104 Degrees F
Inlet Type
NPT
Minimum Operating Temperature
33.8 Degrees F
Maximum Speed @ 50 Hz
1,750 RPM
Maximum Continuous Pressure
15 psi
Output Power
5 hp
Maximum Vacuum
25 in Hg
Sound Level
90 dBA
Duty Cycle
Continuous
Environment
Laboratory, Medical
Outlet Type
NPT
Outlet Gender
Female
Pump Type
Rotary Vane
Thermal Protection
No
Frequency
50 Hz, 60 Hz
Series
Gast
Inlet Gender
Female
Power Source
Separate Drive
Life Expectancy
4,000 hr
Filter Element Material
Wool Felt
Compressor/Pump Enclosure Material
Grey Iron
Housing Material
Grey Iron
Maximum Intermittent Pressure
15 psi
Bearing Type
Shielded Ball

Description

Vacuum Pump, Output Power 5 hp, Phase Not Applicable, Voltage Not Applicable, Inlet Size 1 in, Inlet Type NPT, Inlet Gender Female, Outlet Size 1 in, Outlet Type NPT, Outlet Gender Female, Free Air Flow Rate 45 cfm, 55 cfm, Maximum Vacuum 25 in Hg, Maximum Continuous Pressure 15 psi, Maximum Speed 1,750 RPM
