Shop GAST

2 HP Piston Air Compressor, 110/220V, Industrial Duty

  • Mfr # 8LDF-46T-M850X
  • Zoro # G6079911
product price:
$
6,114.99
/ea
Additional $155.00 delivery surcharge applies per item.
See details

Key Features

Temp. Range
32 Degrees to 104 Degrees F
Thermal Protection
Yes
Hz
50/60
Design
Rocking Piston
Valve
Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8LDF-46T-M850X
Zoro #
G6079911
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
38 in
Inlet Size
1/4 in
Overall Width
17 in
Outlet Size
3/4 in
Overall Height
28.625 in
Air Tank Size
30 gal
Wire Rope Length
38 in
Length
38 in

Details

Item
Piston Air Compressor
Temp. Range
32 Degrees to 104 Degrees F
Thermal Protection
Yes
Hz
50/60
Design
Rocking Piston
Valve
Stainless Steel
Motor Type
Capacitor Start
Application
Fire Sprinkler Systems
Free Air CFM @ 0 PSI
12.4
Free Air CFM @ 20 PSI
10.8
Free Air CFM @ 40 PSI
10.2
Power Cord
No
Phase
Single
Cylinder Material
Aluminum
HP
2 hp
Finish
Paint
Max. PSI Cont./Int.
50
Free Air CFM @ 50 PSI
10.0
Full Load Amps
24/12
Voltage
110/220V AC, 115/230V AC
Lubrication Type
Oil Free
Number of Cylinders
4
RPM
1425/1725
Sound Rating
75 dBA
Standards
UL1450
Motor Design
Capacitor Start
Maximum Operating Temperature
104 Degrees F
Frequency
60 Hz
Maximum Speed
1,725 RPM
Output Power
2 hp
Sound Level
75 dBA
Maximum Continuous Pressure
50 psi
Inlet Type
NPT
Electrical Connection
Wired Leads
Outlet Type
NPT
Pump Type
Piston
Free Air Flow Rate
12.04 cfm
Maximum Intermittent Pressure
50 psi
Minimum Operating Temperature
32 Degrees F
Power Source
Corded Electric
Current Rating
12.0 A, 24.0 A
Piston Type
Reciprocating
Air Tank Style
Horizontal
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

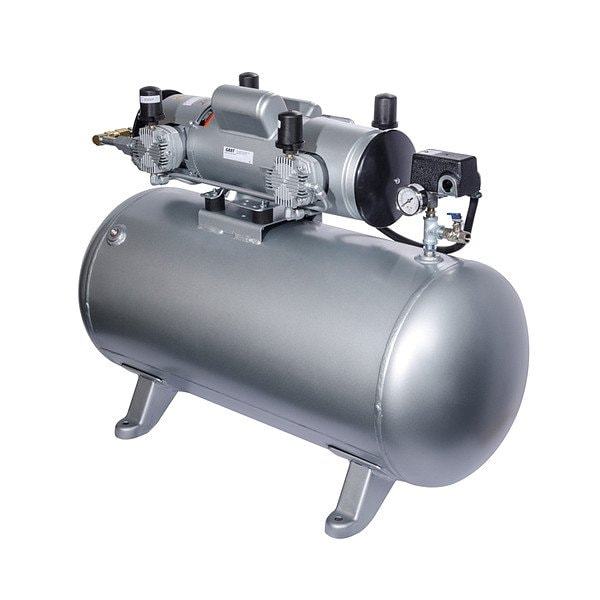

The GAST 8LDF-46T-M850X Piston Air Compressor is a robust, oil-free compressor designed for industrial air supply applications, including fire sprinkler systems. It features a 2 hp capacitor start motor and operates on single-phase 110/220V or 115/230V AC power, delivering up to 50 psi continuous pressure.

Key Features:

  • Oil-free, four-cylinder rocking piston design with aluminum cylinders for efficient air compression
  • Maximum continuous pressure: 50 psi
  • Free air flow rate: up to 12.4 cfm at 0 psi
  • Stainless steel valves for enhanced durability
  • 30-gallon horizontal air tank for stable operation
  • Quiet operation at 75 dBA with built-in thermal protection
  • Operating temperature range: 32°F to 104°F
  • Dimensions: 38" L x 17" W x 28.625" H
  • Inlet port: 1/4 inch NPT; Outlet port: 3/4 inch NPT
  • Manufactured in the USA with low maintenance requirements This compressor is well-suited for demanding industrial environments requiring consistent and reliable air delivery.
