Gast

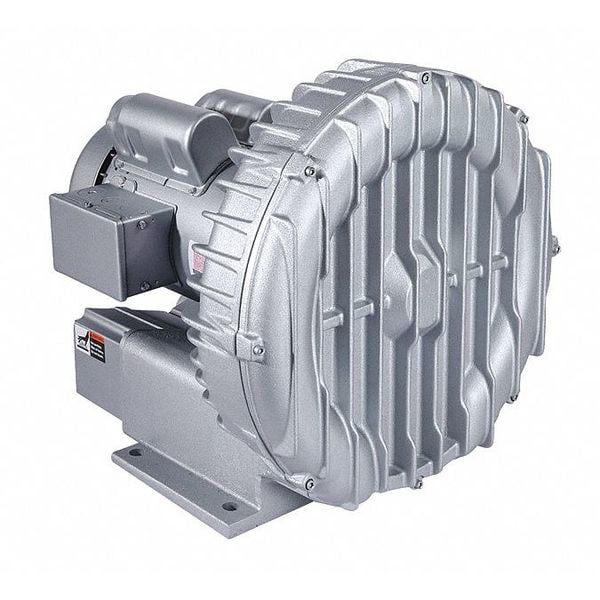

4/Skid R6335A-2 Regenerative Blower

product price: $2,396.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 190 to 220/380 to 415V AC, 208 to 230/460V AC
  • Inlet Size 2 in
  • Outlet Size 2 in
  • Standards CE, CSA
  • Overall Length 17.21 in
See all product information

Product Information

Dimensions

Inlet Size 2 in
Outlet Size 2 in
Overall Length 17.21 in
Overall Depth 17.21 in
Overall Height 15.34 in
Overall Width 15.15 in

Details

Item Regenerative Blower
Voltage 190 to 220/380 to 415V AC, 208 to 230/460V AC
Standards CE, CSA
Thermal Protection Yes
Housing Material Aluminum
Phase Three
Wattage 2.6 kW
Weight 82 lb
Noise Level 72 dBA
Sound Level 72 dBA
Maximum Speed 2,850 RPM, 3,450 RPM
Maximum Flow Rate @ 50Hz 190 cfm
Output Power @ 50 Hz 2.5 hp
Frequency 50 Hz, 60 Hz
Maximum Operating Pressure 80 in wc
Inlet Type NPT
Maximum Flow Rate 220 cfm
Output Power 3.5 hp
Outlet Type NPT
Maximum Ambient Temperature 104 Degrees F
Maximum Vacuum 80 in wc
Series Gast
Duty Cycle Continuous
Voltage @ 50 Hz 190 to 220/380 to 415V AC
Maximum Flow Rate Vacuum 220 cfm @ 80 in wc
Inlet Gender Female
Outlet Gender Female
Current Rating 9.2-8.4/4.2 A
Maximum Air Temperature Rise 100 Degrees F
Enclosure Type Totally Enclosed Fan-Cooled
Enclosure Rating NEMA 56C
Current Rating @ 50 Hz 7 A; 3 A

Description

Regenerative Blower, Phase Three, Output Power 3.5 hp, Maximum Operating Pressure 80 in wc, Maximum Flow Rate 220 cfm, Maximum Vacuum 80 in wc, Voltage 190 to 220/380 to 415V AC, 208 to 230/460V AC, Inlet Size 2 in, Inlet Type NPT, Inlet Gender Female, Outlet Size 2 in, Outlet Type NPT, Outlet Gender Female, Current Rating 9.2-8.4/4.2 A, Frequency 50 Hz, 60 Hz, Housing Material Aluminum
