Shop GAST

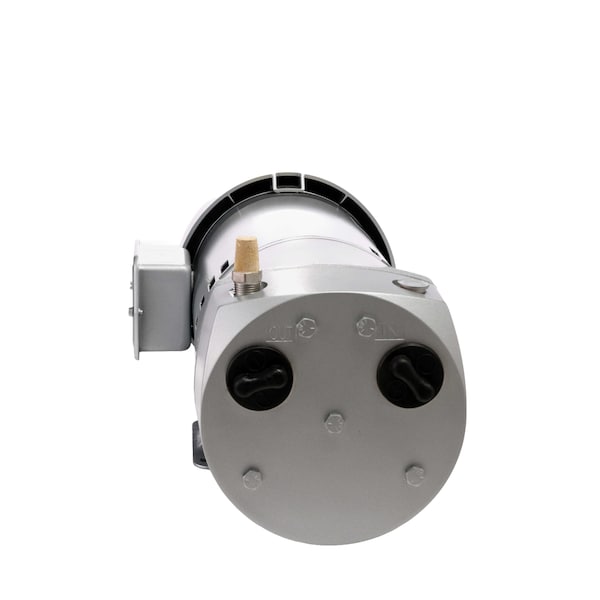

Compressor/Vacuum Pump, 10 psi

  • Mfr # 1023-101Q-G279

  • Zoro # G216298755

product price:  $1,133.99
/ea
Free Shipping & Returns

Key Features

Voltage
208 to 230V AC, 380 to 460V AC
Inlet Size
3/8 in
Outlet Size
3/8 in
Current Rating
2.6/1.3 A
Overall Width
9.58 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1023-101Q-G279
Zoro #
G216298755
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
3/8 in
Outlet Size
3/8 in
Overall Width
9.58 in
Overall Length
18.55 in
Overall Height
10.02 in
Wire Rope Length
18.55 in

Details

Item
Compressor/Vacuum Pump
Voltage
208 to 230V AC, 380 to 460V AC
Current Rating
2.6/1.3 A
Maximum Speed @ 50 Hz
1,425 RPM
Wattage
0.56 kW
Free Air Flow Rate
8 cfm, 10 cfm
Maximum Pressure @ 50 Hz
10 psi
Pump Type
Rotary Vane
Maximum Continuous Pressure
10 psi
Includes
Filter, Internal Muffler, Silencer
Minimum Operating Temperature
32 Degrees F
Series
23
Bearing Type
Permanently Lubricated Sealed Bearings
Environment
Laboratory, Medical
Output Power
0.75 hp
Duty Cycle
Continuous
Maximum Intermittent Pressure
10 psi
Maximum Pressure
10 psi
Maximum Operating Temperature
104 Degrees F
Maximum Speed
1,725 RPM
Compressor/Pump Enclosure Material
Cast Iron
Phase
Three
Weight
52 lb
Standards
ISO 9001 Certified
Thermal Protection
No
Power Source
Corded Electric
Housing Material
Cast Iron
Frequency
50 Hz, 60 Hz
Inlet Type
NPT
Maximum Vacuum
26 in Hg
Outlet Type
NPT
Power Source - TS Only
Corded Electric

Description

Compressor/Vacuum Pump, Output Power 0.75 hp, Phase Three, Voltage 208 to 230V AC, 380 to 460V AC, Inlet Size 3/8 in, Inlet Type NPT, Inlet Gender Not Applicable, Outlet Size 3/8 in, Outlet Type NPT, Free Air Flow Rate 8 cfm, 10 cfm, Maximum Vacuum 26 in Hg, Maximum Continuous Pressure 10 psi, Maximum Speed 1,725 RPM
