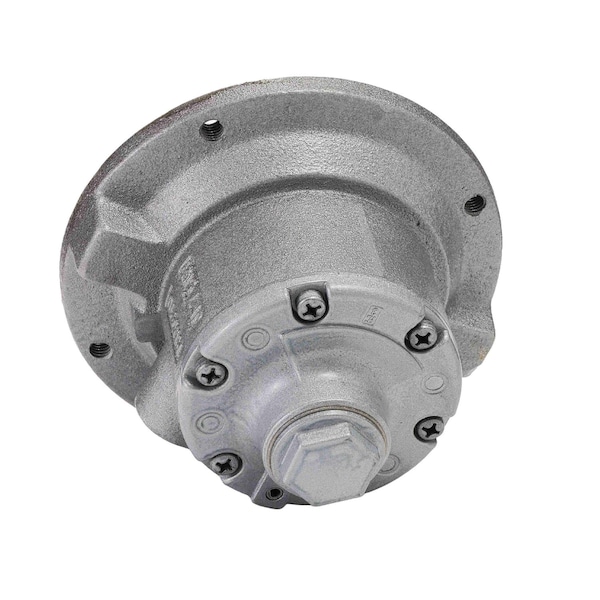

Gast Standard 4Am-Rv-75 Air Motor
Mfr # 4AM-RV-75
Zoro # G1175870
product price: $736.99
/ea
Free Shipping & Returns
Key Features
Motor Design
AIR
Rotation
CW/CCW
Overall Length
5 3/4 in
Mount Type
Flange
Standards
ATEX
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
4AM-RV-75
Zoro #
G1175870
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
5 3/4 in
Shaft Length
1 in
Length Less Shaft
4 3/4 in
Overall Height
6 in
Outside Diameter
6 in
Overall Width
6 in
Shaft Diameter
3/4 in
Mount Hole Center-to-Center Width
5 7/8 in
Inlet Size
1/4 in
Manufacturers Warranty Length
1 yr
Mount Hole Center-to-Center Length
5 7/8 in
Description
Air Motor, Output Power @ Maximum Speed 1.7 hp, Maximum Torque 35 in-lb, No Load Speed 3,000 RPM, Maximum Flow Rate 72 cfm, Shaft Diameter 3/4 in, Shaft Length 1 in, Mount Type Flange, Inlet Size 1/4 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Cast Iron, Shaft Material Grade 32 RC, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width Not Applicable, Weight 11 lb, Housing Material Grade G2500, Housing Material Finish Painted
