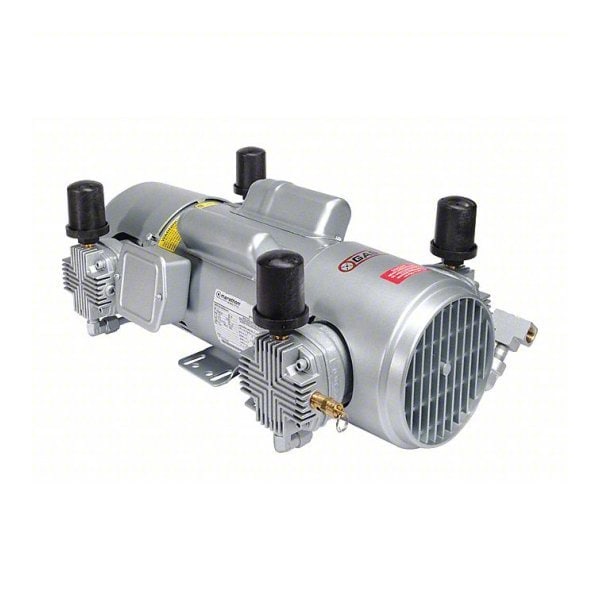

Gast Standard 7Hdd-10-M853 Piston Pump

  • Mfr # 7HDD-10-M853

  • Zoro # G1175855


product price: $2,791.99
/ea
Free Shipping & Returns

Key Features

Lubrication Type
Oil Free
Number of Cylinders
4
Phase
Three
Voltage
220-240/380-440V AC, 230/460V AC
Inlet Size
3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7HDD-10-M853
Zoro #
G1175855
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
3/8 in
Outlet Size
3/8 in
Overall Length
21.64 in
Overall Height
8.41 in
Overall Width
11.98 in

Details

Item
Piston Air Compressor, 2 hp, 3/8" Outlet
Lubrication Type
Oil Free
Number of Cylinders
4
Phase
Three
Voltage
220-240/380-440V AC, 230/460V AC
Thermal Protection
Automatic Reset
Cylinder Material
Aluminum
Finish
Paint
Standards
CSA
Maximum Continuous Pressure
100 psi
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
104 Degrees F
Sound Level
76 dBA
Output Power
2 hp
Air Tank Style
Tankless
Outlet Type
NPT
Piston Type
Reciprocating
Free Air Flow Rate
9.1 cfm
Maximum Speed
1,725 RPM
Maximum Intermittent Pressure
100 psi
Inlet Type
NPT
Motor Design
Open Drip Proof
Frequency
60 Hz
Duty Cycle
Continuous
Current Rating
3.3 A, 6.6 A
Pump Type
Piston
Valve Material
Stainless Steel

Description

Piston Air Compressor, 2 hp, 3/8 In. Outlet, Lubrication Type Oil Free, Number of Cylinders 4, Output Power 2 hp, Phase Three, Voltage 220-240/380-440V AC, 230/460V AC, Maximum Continuous Pressure 100 psi, Maximum Intermittent Pressure 100 psi, Free Air Flow Rate 9.1 cfm, Maximum Speed 1,725 RPM, Inlet Size 3/8 in, Inlet Type NPT, Outlet Size 3/8 in, Outlet Type NPT
