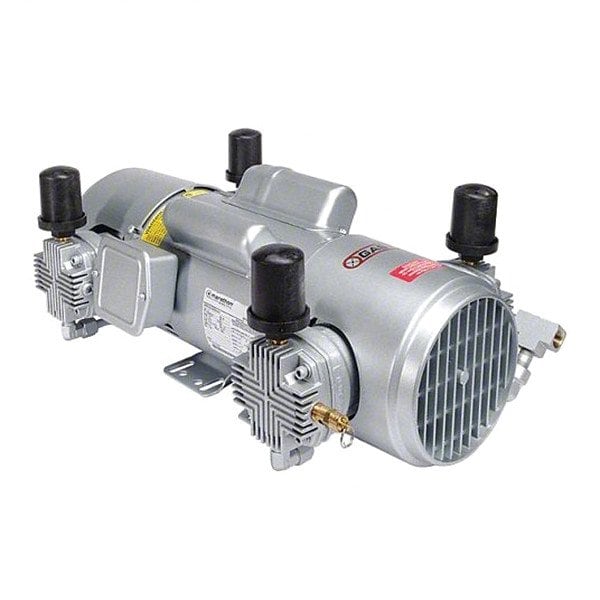

Piston Air Compressor, 2 hp, 3/8" Outlet

  • Mfr # 7HDD-10-M853

  • Zoro # G1175855


product price:
$
2,931.99
/ea
Free Shipping & Returns

Key Features

Lubrication Type
Oil Free
Number of Cylinders
4
Phase
Three
Voltage
220-240/380-440V AC, 230/460V AC
Inlet Size
3/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
7HDD-10-M853
Zoro #
G1175855
UPC #
-
Country of Origin
United States
Item
Piston Air Compressor, 2 hp, 3/8" Outlet
Lubrication Type
Oil Free
Number of Cylinders
4
Phase
Three
Voltage
220-240/380-440V AC, 230/460V AC
Thermal Protection
Automatic Reset
Cylinder Material
Aluminum
Finish
Paint
Standards
CSA
Maximum Continuous Pressure
100 psi
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
104 Degrees F
Sound Level
76 dBA
Output Power
2 hp
Air Tank Style
Tankless
Outlet Type
NPT
Piston Type
Reciprocating
Free Air Flow Rate
9.1 cfm
Maximum Speed
1,725 RPM
Maximum Intermittent Pressure
100 psi
Inlet Type
NPT
Motor Design
Open Drip Proof
Frequency
60 Hz
Duty Cycle
Continuous
Current Rating
3.3 A, 6.6 A
Pump Type
Piston
Valve Material
Stainless Steel

Description

The Gast 7HDD-10-M853 is an oil-free, four-cylinder piston air compressor with a reciprocating design. It operates on 220-240/380-440V AC, 230/460V AC three-phase power at 60 Hz at a rated 2 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 9.1 cfm, and a maximum continuous pressure of 100 psi. It has a maximum speed of 1,725 RPM, a full-load current of 3.3 A, 6.6 A, and a measured sound level of 76 dBA. The operating temperature range is 32 to 104°F. Construction includes an aluminum cylinder, an open drip-proof motor, and stainless steel valves. Air connections are 3/8 in NPT inlet and outlet. Overall dimensions are 21.64 x 11.98 x 8.41 in (L x W x H). Duty cycle: continuous.
