Piston Air Compressor, Size 1/4", 2000 RPM

  • Mfr # LOA-101-JR
  • Zoro # G0102704
product price:
$
611.99
/ea
Free Shipping & Returns

Key Features

Lubrication Type
Oilless
Number of Cylinders
1
HP
7/64 hp
Phase
Single
Voltage
11 to 15V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LOA-101-JR
Zoro #
G0102704
UPC #
-
Country of Origin
United States
Item
Piston Air Compressor
Lubrication Type
Oilless
Number of Cylinders
1
HP
7/64 hp
Phase
Single
Voltage
11 to 15V DC
Free Air CFM @ 0 PSI
0.7
Free Air CFM @ 100 PSI
0.1
Free Air CFM @ 10 In. Hg
0.3
Full Load Amps
9 A
Max. Vacuum
27.0 in Hg
Free Air CFM @ 20 In. Hg
0.15
Max. PSI Cont./Int.
100
Standards
CE, CSA
Amps
9 A
Thermal Protection
No
Cylinder Material
Aluminum
Finish
Painted
Output Power
0.1 hp
Maximum Continuous Pressure
100 psi
Maximum Operating Temperature
104 Degrees F
Free Air Flow Rate
0.66 cfm
Maximum Speed
2,000 RPM
Maximum Vacuum
27.5 in Hg
Current Rating
9.0 A
Minimum Operating Temperature
41 Degrees F
Air Tank Style
Tankless
Piston Type
Reciprocating
Outlet Type
NPT
Maximum Intermittent Pressure
100 psi
Inlet Type
NPT
Pump Type
Rocking Piston
Sound Level
70 dBA
Power Source
Corded Electric
Series
Gast
Duty Cycle
Continuous
Inlet Gender
Female
Control Type
Manual
Outlet Gender
Female
Exhaust Location
Front
Enclosure Type
Clean Dust Free
Enclosure Rating
IP20
Life Expectancy
2,000 hr
Valve Type
Reed
Motor Design
Brushed DC
Electrical Connection
Wire Leads
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

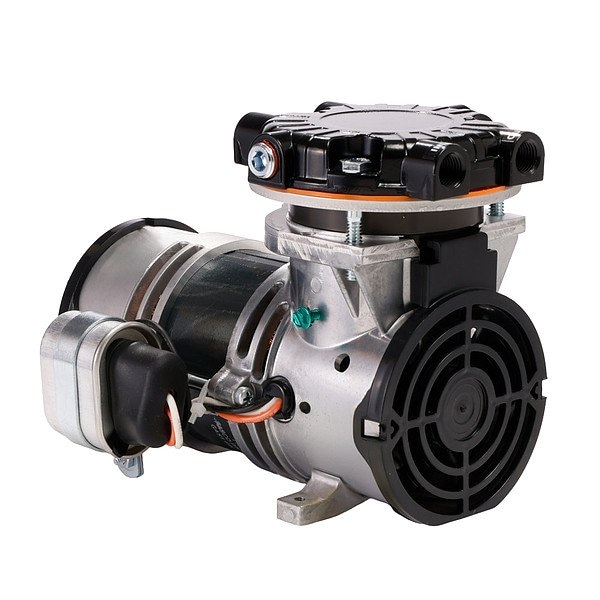

The Gast LOA-101-JR is an oil-free, single-cylinder piston air compressor with a reciprocating design. It runs on 11 to 15V DC power at a rated 0.1 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air delivery ranging from 0.1 CFM at 100 psi up to 0.66 CFM at 0 psi, a maximum continuous pressure of 100 psi, and a maximum vacuum of 27.5 in Hg. It has a maximum speed of 2,000 RPM, a full-load current of 9 A, and a measured sound level of 70 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, a brushed DC motor, and reed valves. Enclosure type is clean dust free. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 9.13 x 4.28 x 5.97 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 2,000 hr.
