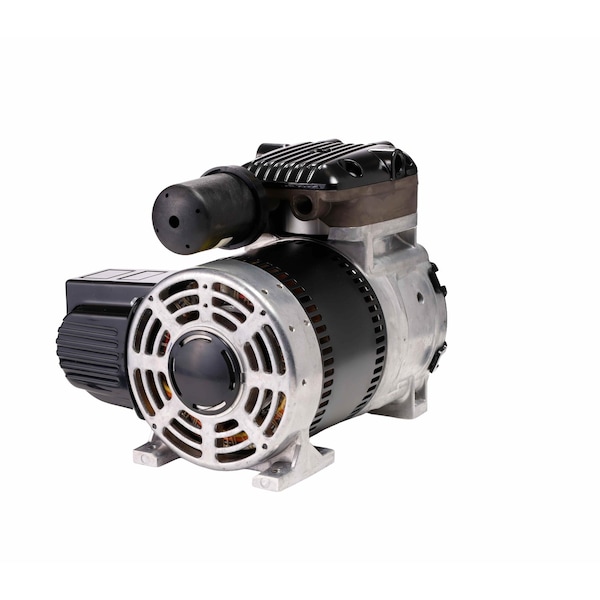

Gast Rocking Piston Vacuum Pump, 7-5/16"W 86R142-P001B-N270X - main

Rocking Piston Vacuum Pump, 7-5/16"W

  • Mfr # 86R142-P001B-N270X

  • Zoro # G5431907

product price: $727.99
/ea
Free Shipping & Returns

Key Features

Number of Cylinders
1
HP
1/4 hp
Phase
Single
Voltage
115/230V AC
Inlet Size
1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
86R142-P001B-N270X
Zoro #
G5431907
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
1/4 in
Outlet Size
1/4 in
Overall Length
7.718 in
Overall Height
7.078 in
Overall Width
7.312 in

Details

Item
Rocking Piston Vacuum Pump
Number of Cylinders
1
HP
1/4 hp
Phase
Single
Voltage
115/230V AC
Sound Rating
65 dBA
Power Cord
No
Free Air CFM @ 10 In. Hg
1.0
Full Load Amps
2.8/1.4
Cylinder Material
Aluminum
Standards
CE, CUR
Motor Type
Capacitor Start
Application
Aeration, Beverage Dispensing, Nitrogen Generation, Tire Inflation
Free Air CFM @ 100 PSI
0.8
Free Air CFM @ 40 PSI
1.3
Thermal Protection
Yes
Free Air CFM @ 20 PSI
1.5
RPM
1725
Max. PSI Cont./Int.
100
Max. Vacuum
27 in Hg
Hz
50/60
Free Air CFM @ 0 In. Hg
1.0
Free Air CFM @ 50 PSI
1.2
Temp. Range
32 Degrees to 104 Degrees F
Free Air CFM @ 0 PSI
2.0
Valve
Stainless Steel
Design
Rocking Piston
Maximum Vacuum
27 in Hg
Output Power
0.25 hp
Free Air Flow Rate
2 cfm
Maximum Speed
1,725 RPM
Pump Type
Rocking Piston
Maximum Intermittent Pressure
100 psi
Maximum Operating Temperature
104 Degrees F
Current Rating
1.4 A, 1.8 A, 2.8 A, 3.5 A
Outlet Type
NPT
Maximum Continuous Pressure
100 psi
Air Tank Style
Tankless
Minimum Operating Temperature
41 Degrees F
Piston Type
Rocking
Frequency
50 Hz, 60 Hz
Sound Level
65 dBA
Motor Design
Capacitor Start
Valve Material
Stainless Steel
Inlet Type
NPT

Description

Rocking Piston Vacuum Pump, Number of Cylinders 1, Output Power 0.25 hp, Phase Single, Voltage 115/230V AC, Maximum Continuous Pressure 100 psi, Maximum Intermittent Pressure 100 psi, Maximum Vacuum 27 in Hg, Free Air Flow Rate 2 cfm, Maximum Speed 1,725 RPM, Inlet Size 1/4 in, Inlet Type NPT, Outlet Size 1/4 in, Outlet Type NPT
