Shop GAST

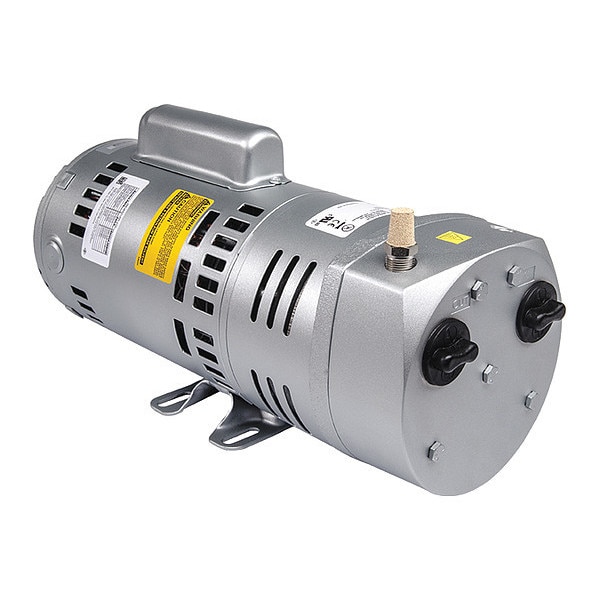

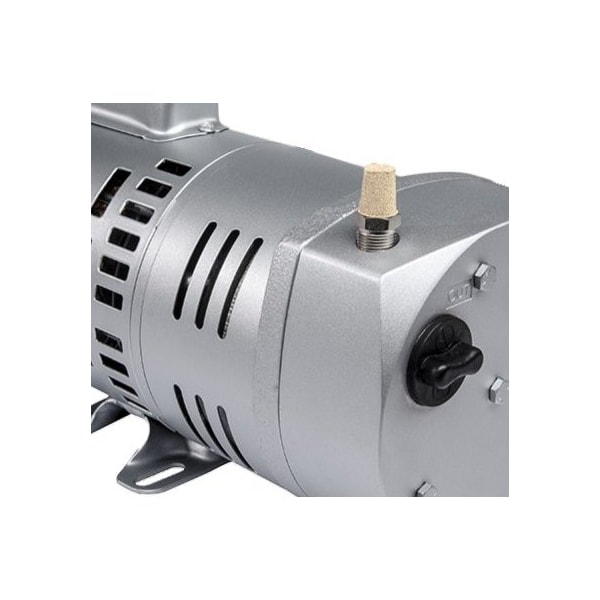

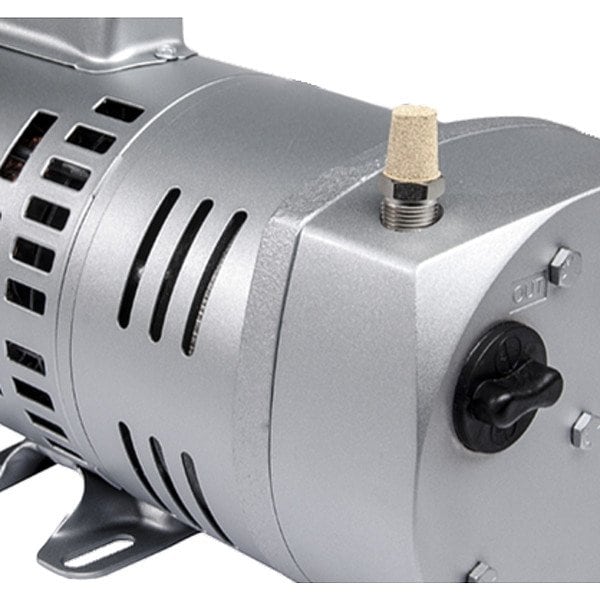

Stock 6/Skid Rotary Vane Pump

  • Mfr # 1423-101Q-G626X

  • Zoro # G1176379

product price:
$
1,323.99
/ea
Free Shipping & Returns

Key Features

Voltage
100 to 110/200 to 240V AC, 100 to 115/208 to 230V AC
Inlet Size
3/8 in
Outlet Size
3/8 in
Overall Length
16.95 in
Includes
External Inlet Filter, Internal Muffler and Filter, Thermal Protector
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1423-101Q-G626X
Zoro #
G1176379
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
3/8 in
Outlet Size
3/8 in
Overall Length
16.95 in
Overall Height
8.78 in
Overall Width
6.5 in
Wire Rope Length
16.95 in
Length
16.95 in

Details

Item
Vacuum Pump
Voltage
100 to 110/200 to 240V AC, 100 to 115/208 to 230V AC
Includes
External Inlet Filter, Internal Muffler and Filter, Thermal Protector
Thermal Protection
Yes
Standards
CE, cURus, UKCA
Lubrication Type
No Oil
Phase
Single
Wattage
0.75 kW
Output Power
1 hp
Maximum Speed
1,725 RPM
Maximum Pressure
10 psi
Outlet Type
NPT
Maximum Vacuum
26 in Hg
Maximum Speed @ 50 Hz
1,425 RPM
Free Air Flow Rate
11.5 cfm, 13 cfm
Maximum Continuous Pressure
10 psi
Maximum Pressure @ 50 Hz
10 psi
Sound Level
79 dBA
Inlet Type
NPT
Minimum Operating Temperature
33.8 Degrees F
Maximum Operating Temperature
104 Degrees F
Weight
54.5 lb
Power Source
Corded Electric
Inlet Gender
Female
Insulation Class
B
Frequency
50 Hz, 60 Hz
Current Rating
6.7 A
Series
Gast
Duty Cycle
Continuous
Pump Type
Rotary Vane
Outlet Gender
Female
Environment
Laboratory, Medical
Filter Element Material
Polypropylene
Compressor/Pump Enclosure Material
Grey Iron
Housing Material
Grey Iron
Life Expectancy
4,000 hr
Maximum Intermittent Pressure
10 psi
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Vacuum Pump, Output Power 1 hp, Phase Single, Voltage 100 to 110/200 to 240V AC, 100 to 115/208 to 230V AC, Inlet Size 3/8 in, Inlet Type NPT, Inlet Gender Female, Outlet Size 3/8 in, Outlet Type NPT, Outlet Gender Female, Free Air Flow Rate 11.5 cfm, 13 cfm, Maximum Vacuum 26 in Hg, Maximum Continuous Pressure 10 psi, Maximum Speed 1,725 RPM
