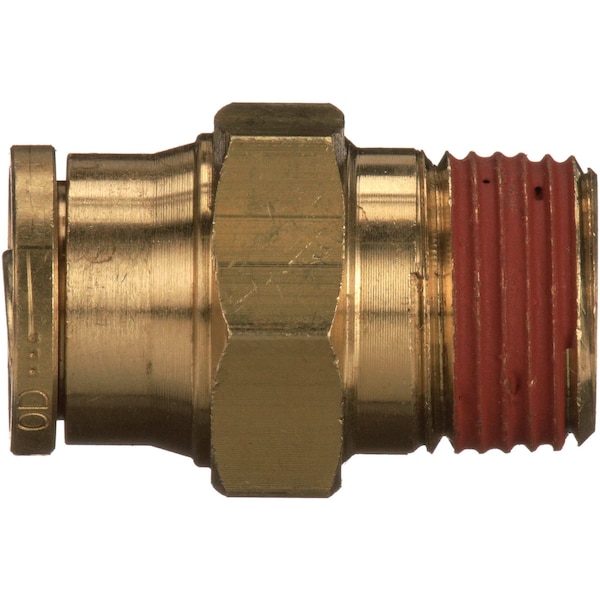

Air Brake To Male Pipe Surelok
Mfr # G31100-0804
Zoro # G214899244
product price: $20.35
/eaKey Features
Temp. Range
-40 Deg. F to +200 Deg. F
Length
1.68 in
Fitting Material
360 Brass
Thread Size
1/4-18 in
Hex Size
.875 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
G31100-0804
Zoro #
G214899244
UPC #
29769155202
Country of Origin
Unknown
Dimensions
Length
1.68 in
Thread Size
1/4-18 in
Hex Size
.875 in
Details
Temp. Range
-40 Deg. F to +200 Deg. F
Fitting Material
360 Brass
Description
Recommended for air brake systems - compressed air connectors or suspension, steering, engine transmission or other onboard vehicle applications. Not for fuel, oil or water. Easy to assemble, push to connect, one piece fitting. Reusable and field serviceable. Designed for strength and durability. Provides significant reduction in air system leakage. Meets DOT FMVSS 571.106, SAE J1131, DIN 74324 and German TUV requirements. For use with SAE J844 or DIN 74324 nylon tubing. Temperature Range: -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C).
Internal and external machined thread for connection to ports. Machining retains collet, tube support and O-Ring; Tube support prevents tube collapse during severe loading conditions; Collet teeth grip the tube, holding it firmly in the fitting; Internal O-Ring provides a seal and necessary interference between tube and fitting body
Internal and external machined thread for connection to ports. Machining retains collet, tube support and O-Ring; Tube support prevents tube collapse during severe loading conditions; Collet teeth grip the tube, holding it firmly in the fitting; Internal O-Ring provides a seal and necessary interference between tube and fitting body
