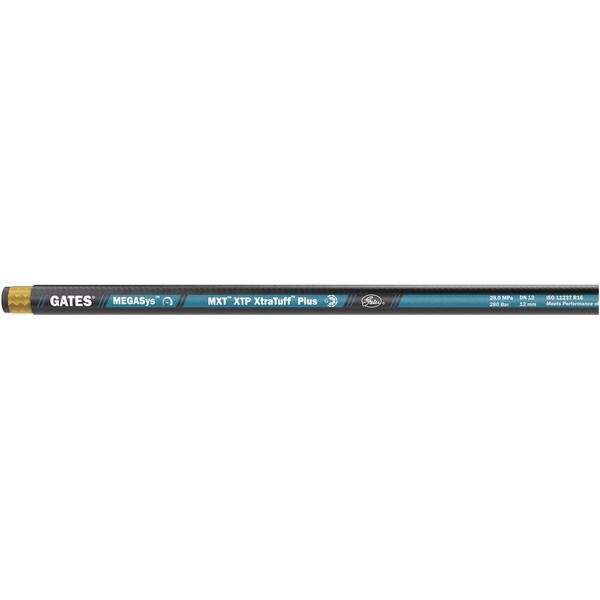

Hydraulic Hose - High Pressure /PRICED BY THE FT, 330 Feet Total
Mfr # 70520
Zoro # G714901805
product price: $14.49
/ea
Sold in multiples of 330 for $4,781.70
Key Features
Temp. Range (F)
-40 Deg. F to +212 Deg. F
Dash Size
8
Length (Ft.)
330 F
Type
Hydraulic Hose
Min. Bend Radius (In.)
2.8 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
70520
Zoro #
G714901805
UPC #
770075821489
Country of Origin
Unknown
Dimensions
Dash Size
8
Length (Ft.)
330 F
Min. Bend Radius (In.)
2.8 in
Details
Temp. Range (F)
-40 Deg. F to +212 Deg. F
Type
Hydraulic Hose
Cover Material
Synthetic Rubber - Nitrile - Type C2 - Color Coded Layline
Description
MXT is recommended for high-pressure hydraulic oil lines and designed to address our customers' evolving application challenges. Using materials science and process innovation, combined with a patent-pending construction, Gates now offers a new hydraulic solution that is lighter, stronger, and more Flexible.
For use with MegaCrimp Couplings [G25 Series]; Tested to industry-leading 600,000 impulse cycles; More Flexible with up to 40 percent lower force-to-bend for faster and more ergonomic installation; Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing; Meets Flame Resistance Acceptance Designation MSHA 2G; Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C); The XtraTuff Plus cover on MXT hose offers improved abrasion & ozone resistance, delivering increased durability to power your most demanding fluid power applications; Does not impact the flexibility advantages of MXT cover
For use with MegaCrimp Couplings [G25 Series]; Tested to industry-leading 600,000 impulse cycles; More Flexible with up to 40 percent lower force-to-bend for faster and more ergonomic installation; Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing; Meets Flame Resistance Acceptance Designation MSHA 2G; Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C); The XtraTuff Plus cover on MXT hose offers improved abrasion & ozone resistance, delivering increased durability to power your most demanding fluid power applications; Does not impact the flexibility advantages of MXT cover
