  13. 120VAC Non-Reversing Magnetic Contactor 3P 45A NEMA 2
Shop All Magnetic Contactors
Ge

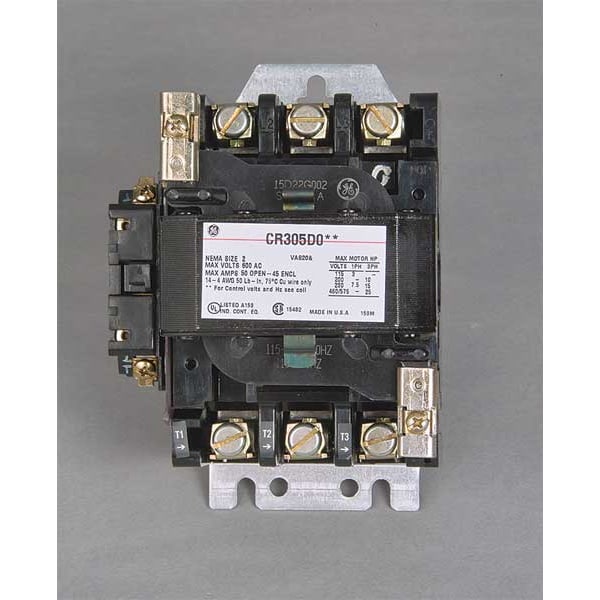

120VAC Non-Reversing Magnetic Contactor 3P 45A NEMA 2

product price: $503.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Action Non-Reversing
  • Full Load Amps 45 A
  • Number of Poles 3
  • NEMA Contactor Size 2
  • Reversing No
See all product information

Product Information

Dimensions

NEMA Contactor Size 2
Height 6.62 in
Width 5.5 in
Depth 5.5 in
NEMA Size 2
Overall Height 5.5 in
Mounting Hole Distance - Height 6 in
Mounting Hole Diameter 0.25 in
Overall Depth 6.62 in
Overall Width 5.44 in
Mounting Hole Distance - Width 2 in

Details

Item Magnetic Contactor
Action Non-Reversing
Full Load Amps 45 A
Number of Poles 3
Coil Volts 120V AC
Reversing No
HP @ 1 Phase - 120V 3 hp
HP @ 1 Phase - 240V 7 1/2 hp
HP @ 3 Phase - 208V 10 hp
HP @ 3 Phase - 240V 15 hp
HP @ 3 Phase - 575V 25 hp
HP @ 3 Phase - 480V 25 hp
Enclosure NEMA Rating No Enclosure
Auxiliary Contact Form 1NO
Standards cULus, UL Listed, WEEE B2C/B2B
Hz 50/60
Series CR305
Horsepower @ Three Phase - 480V AC 25 hp
Includes Auxiliary Contacts Yes
Full Load Current - Inductive 45 A
Maximum Voltage Rating 600V AC
Phase Three
Horsepower @ Three Phase - 240V AC 15 hp
Horsepower @ Three Phase - 208V AC 10 hp
Number of Auxillary Contacts 1
Horsepower @ Three Phase - 600V AC 25 hp
Embedded Surge Suppressor No
Horsepower @ Single Phase - 240V AC 7 1/2 hp
Frequency 50/60 Hz
Horsepower @ Single Phase - 120V AC 3 hp
Resistance Properties Temperature Resistant
Reversing Capability Non-Reversing
Contactor Style NEMA
NEMA Enclosure Rating No Enclosure
Coil Voltage 120V AC

Description

NEMA Magnetic Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size 2, Coil Voltage 120V AC, Number of Poles 3, Full Load Current - Inductive 45 A, Reversing Capability Non-Reversing, Overall Height 5.5 in, Overall Width 5.44 in, Series CR305, Number of Auxillary Contacts 1, Contactor Style NEMA, Horsepower @ Three Phase - 240V AC 15 hp, Horsepower @ Three Phase - 480V AC 25 hp, Phase Three, Horsepower @ Three Phase - 600V AC 25 hp
