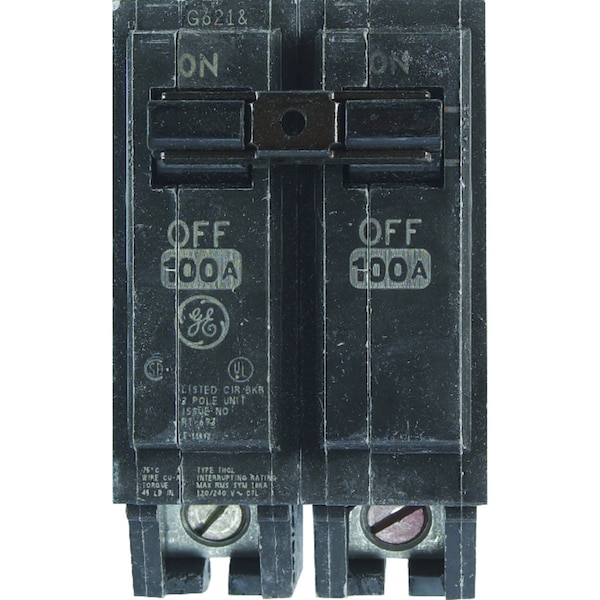

Circuit Breaker, THQL Series, 100A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
Mfr # THQL21100PA
Zoro # G8639098
CAD Available
product price: $74.95
/eaKey Features
CAD Drawing
Series
THQL
Amps
100A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
THQL21100PA
Zoro #
G8639098
UPC #
783164700374
Country of Origin
United States
Dimensions
Frame Size
100A/THQ
Width
2 in
Depth
2-3/8 in
Height
3-9/32 in
Details
Item
Circuit Breaker
Series
THQL
Amps
100A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Phase
1
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA at 120/240V AC
Trip Type
Thermal Magnetic
Instantaneous Trip
Fixed
Terminal Connection
Screw
DC Voltage Rating
Not Rated
CAD Available
Yes
Description
Plug-in Circuit Breaker, 100 Amp, Double Pole, 240 Volt, For Use in GE Load Centers and/or GE Sub-Feed Panel Boxes
- • Double Pole
- • 1" Format
- • UL Listed
- •
- •
