  9. Circuit Breaker, THQL Series, 20A, 2 Pole, 120/240V AC, 10kA at 120/240V AC

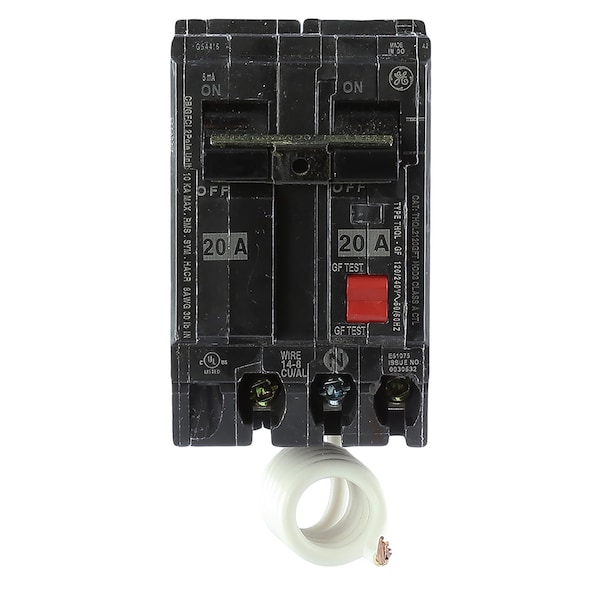

Ge Circuit Breaker, THQL Series, 20A, 2 Pole, 120/240V AC, 10kA at 120/240V AC THQL2120GFTA - main

Circuit Breaker, THQL Series, 20A, 2 Pole, 120/240V AC, 10kA at 120/240V AC

  • Mfr # THQL2120GFTA

  • Zoro # G9446417

product price: $166.66
/ea
Free Shipping & Returns

Key Features

Series
THQL
Amps
20A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Ground Fault Circuit Interrupter
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
THQL2120GFTA
Zoro #
G9446417
UPC #
783164700206
Country of Origin
Dominican Republic

Dimensions

Frame Size
100A/THQ
Width
2 in
Depth
2-3/8 in
Height
3-9/32 in

Details

Item
Circuit Breaker
Series
THQL
Amps
20A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Ground Fault Circuit Interrupter
Phase
1
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA at 120/240V AC
Trip Type
Thermal Magnetic
Instantaneous Trip
Fixed
Terminal Connection
Screw
DC Voltage Rating
Not Rated

Description

The GE 20 amp Double Pole Ground Fault Circuit Breaker with self-test has a tin plated copper stab to create a reliable, permanent and corrosion resistant connection. The self-test functionality is a UL requirement on all GFCI devices commencing in June 2015. This variant of the GFCI ensures its ground circuitry is functioning properly by automatically running diagnostic testing on a periodic basis. Should a problem be detected, the circuit breaker will trip and will need to be replaced.


  • • Unit provides protection against overloads, short circuits and ground faults
  • • Detects very low levels of electrical current leakage (ground faults) and acts quickly to shut off power, preventing serious shock
  • • Wire range is 14-8 AWG CU/12-8 AWG AL
  • • UL listed
  • •
