  9. Molded Case Circuit Breaker, SG Series, 400 A, 3 Pole, 600V AC, 200kA at 120/240V AC

This item is Discontinued.

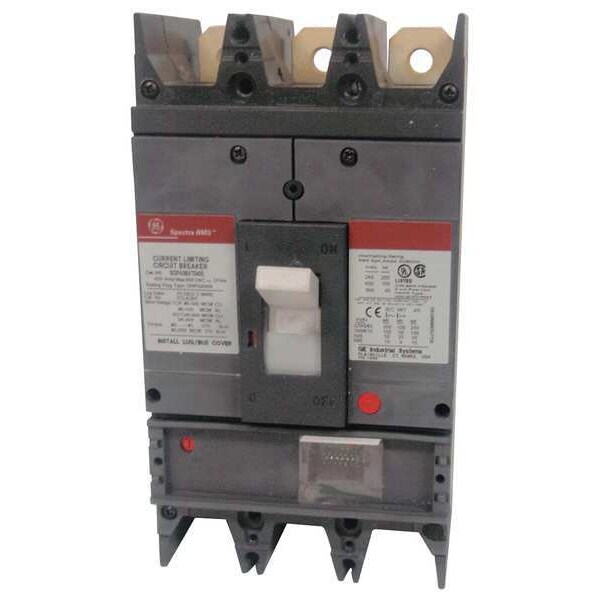

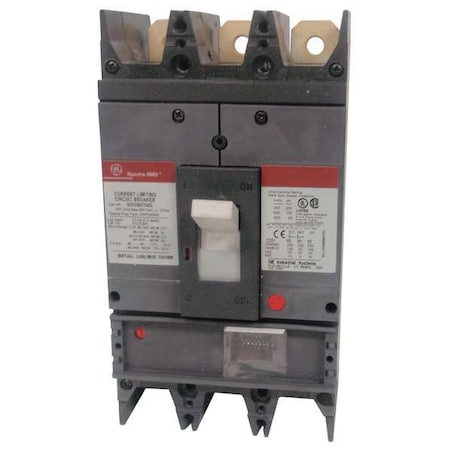

Ge Molded Case Circuit Breaker, SG Series, 400 A, 3 Pole, 600V AC, 200kA at 120/240V AC SGPA36AT0400

Molded Case Circuit Breaker, SG Series, 400 A, 3 Pole, 600V AC, 200kA at 120/240V AC (Discontinued)

  • Mfr # SGPA36AT0400
  • Zoro # G2024906
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SGPA36AT0400
Zoro #
G2024906
UPC #
783164211665
Country of Origin
Multiple

Dimensions

Frame Size
600A/SG
Width
5.48 in
Depth
5.5 in
Height
13.62 in
Max. Wire Size
500 MCM (Cu), 600 MCM (Al)
Min. Wire Size
2 AWG (Cu), 6 AWG (Al)

Details

Item
Molded Case Circuit Breaker
Series
SG
Amps
400 A
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Interchangeable Rating Plug, Standard
Phase
3
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Free Standing
Max. AIR Rating
200kA at 120/240V AC
Trip Type
Electronic
Instantaneous Trip
Instantaneous
Terminal Connection
Bolt On Termination Lug
Phase Connection
ABC
DC Voltage Rating
Not Rated
Mounting
Free Standing
High Amp Trip Setting
4,080 A
Standards
CSA Certified, UL Listed
For Use With
GE Panelboards
Low Amp Trip Setting
1,210 A

Description

Molded Case Circuit Breaker, 400 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 200kA at 120/240V AC, For Use With GE Panelboards, Series SG, High Amp Trip Setting 4,080 A, Low Amp Trip Setting 1,210 A, Circuit Breaker Type Interchangeable Rating Plug, Standard, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Bolt On Termination Lug, Trip Type Electronic, Phase Three, Instantaneous Trip Instantaneous, Phase Connection ABC, Frame Size 600A/SG
