Shop GE

NEMA Fusible Str, Size 1,120V Coil, 1 Enc

  • Mfr # CR308CT94R3HDAAAA

  • Zoro # G3059025

product price:
$
2,632.99
/ea
Free Shipping & Returns

Key Features

NEMA Size
1
Amps AC
27 A
Coil Volts
480V/120V
Fuse Clip Type
Class R
Enclosure NEMA Rating
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CR308CT94R3HDAAAA
Zoro #
G3059025
UPC #
094714045365
Country of Origin
Mexico
Item

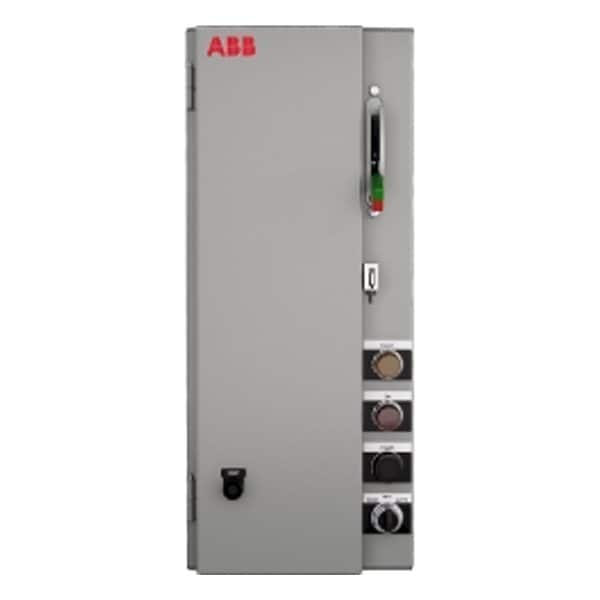

NEMA Combination Starter
Amps AC
27 A
Coil Volts
480V/120V
Fuse Clip Type
Class R
Enclosure NEMA Rating
1
Auxiliary Contact Form
1NO/1NC
Short Circuit Protection
Fusible Disconnect
Overload Relay Amp Setting
13 to 27A
Operator
None
Pilot Light
No
Control Transformer
Yes
Control Transformer Voltage
480V AC Primary, 120V AC Secondary
HP @ 3 Phase - 240V
7 1/2 hp
HP @ 3 Phase - 480V
10 hp
Includes
Transformer with 2 Primary Fuses and 1 Secondary Fuse
Standards
CSA, UL Listed
Hz
50/60
Number of Poles
3
Horsepower @ Three Phase - 480V AC
10 hp
Includes Auxiliary Contacts
Yes
Includes Pilot Light
No
Number of Auxillary Contacts
2
Coil Voltage
120/480V AC
Starter Style
NEMA
Horsepower @ Single Phase - 240V AC
7 1/2 hp
Current AC
27 A
Minimum Overload Relay Current Setting
13 A
NEMA Enclosure Rating
1
Frequency
50/60 Hz
Includes Control Transformer
Yes
Overload Protection Type
Electronic
Maximum Overload Relay Current Setting
27 A
For Fuse Class
Class R
Reversing Capability
Non-Reversing
Horsepower @ Three Phase - 240V AC
7 1/2 hp
Phase
Three

Description

NEMA Combination Starter, Coil Voltage 120/480V AC, Current AC 27 A, NEMA Enclosure Rating 1, NEMA Size 1, Starter Style NEMA, Reversing Capability Non-Reversing, Auxiliary Contact Form 1NO/1NC, Short Circuit Protection Fusible Disconnect, Includes Control Transformer Yes, Control Transformer Voltage 480V AC Primary, 120V AC Secondary, For Fuse Class Class R, Phase Three, Horsepower @ Single Phase - 240V AC 7 1/2 hp, Overload Protection Type Electronic, Operator Function Not Applicable
