  9. 1/4" FNPT SPST NO Liquid Flow Switch 0.25 gpm
Shop All Level Switches
Gems Sensors

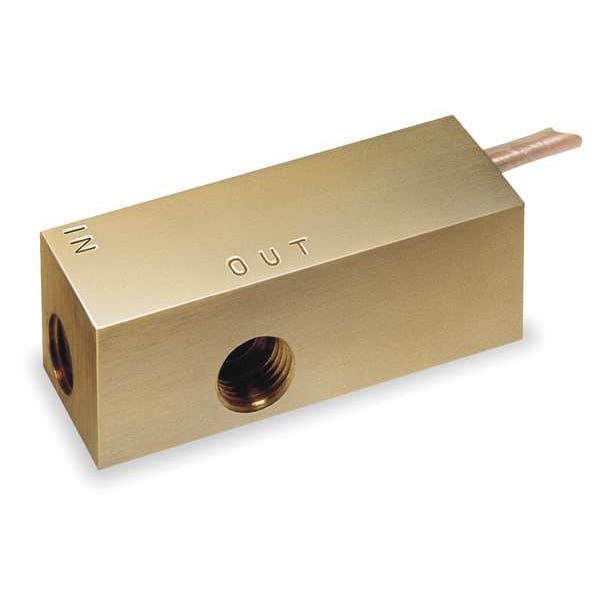

1/4" FNPT SPST NO Liquid Flow Switch 0.25 gpm

product price: $190.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connection Size (In.) 1/4 FNPT
  • Switch Type SPST
  • Max. Pressure 1000 psi
  • Max. Fluid Temp. (F) 200 Degrees F
  • Body Material Brass
See all product information

Product Information

Dimensions

Connection Size (In.) 1/4 FNPT
Overall Length 2.8 in
Connection Size 1/4 in
Overall Width 1 in
Overall Height 1 in

Details

Switch Type SPST
Max. Pressure 1000 psi
Max. Fluid Temp. (F) 200 Degrees F
Body Material Brass
Float Switch Contact Form Normally Open
Recommended Filtration (microns) 50 micron
Item Liquid Flow Switch
Min. Fluid Temp. (F) -20 Degrees F
Contact Rating 20VA
Max. Ambient Temp. (F) 200 Degrees F
Max. Pressure (PSI) 1,000 psi
Type Piston
Material of Construction Brass, Stainless Steel
Flow Rate 0.25 gpm
Min. Ambient Temp. (F) -20 Degrees
Standards CE Certified, CSA Listed, UL Listed
Ambient Temperature - Maximum 200 Degrees F
Connection Type FNPT
Flow Rate - Minimum 0 gpm
Media Temperature - Minimum -20 Degrees F
Switch Position Normally Open
Set Point Configuration Fixed
Wetted Material 316 Stainless Steel, Brass
Filter Rating - Maximum 50 micron
Media Temperature - Maximum 200 Degrees F
Flow Rate - Maximum 0.25 gpm
Contact Rating (DC) 20 V
Flow Switch Type Piston
Housing Material Brass
Ambient Temperature - Minimum -20 Degrees F

Description

Liquid Flow Switch, Ambient Temperature - Maximum 200 Degrees F, Ambient Temperature - Minimum -20 Degrees F, Connection Size 1/4 in, Connection Type FNPT, Contact Rating (DC) 20 V, Filter Rating - Maximum 50 micron, Flow Rate - Maximum 0.25 gpm, Flow Rate - Minimum 0 gpm, Flow Switch Type Piston, Housing Material Brass, Media Temperature - Maximum 200 Degrees F, Media Temperature - Minimum -20 Degrees F, Overall Height 1 in, Overall Length 2.8 in, Overall Width 1 in, Phase -
