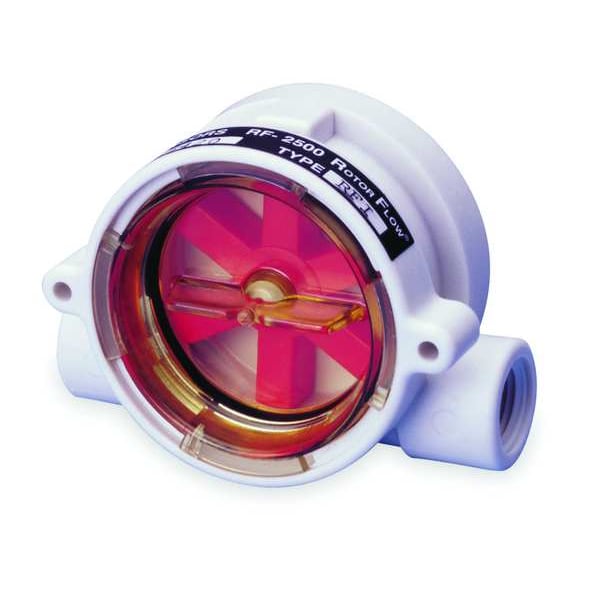

Flow Rate Indicator, Rotor, 5 GPM Max

  • Zoro #: G0453083
  • Mfr #: RFI, 155420
$78.86
  • Item: Flow Indicator
  • Connection Type: FNPT
  • Gauge/Conductor: -
See full product details
This item ships free.

Gems Sensors #RFI, 155420 Specifications

  • Zoro #: G0453083
  • Mfr #: RFI, 155420
Item: Flow Indicator Connection Type: FNPT
Gauge/Conductor: - For Pipe Size: 1/4 in
Length (In.): 1-43/64" Max. Temp. (F): 180
Master Totalizer: - Application: -
Connection Size (In.): 1/4 FNPT Height: 2 3/8 in
Max. Pressure (PSI): 100 @ 70F, 40 @ 180F Manufacturers Warranty Length: -
Display: - Pressure Drop - 100% Flow (PSI): -
Shaft Material: - Max. Viscosity: 200 SUS
Width: 3 1/16 in Fluid Temp. Range: -20 Degrees to 180 Degrees F
Specific Gravity: - Cable Length (Ft.): -
Flow Material: - Wetted Materials: Buna N, Ceramic, Polypropylene, Polysulfone, PPS Compsite
Max. Voltage: - Pressure Drop - 50% Flow (PSI): -
Insert: - Resetable Cumulative Totalizer: -
Max. Reed Switch Current (mA): - Height (In.): 2-3/8
Max. Pressure: 40 psi @ 180 Degrees F, 100 psi @ 70 Degrees F Flow Range: 0.5 to 5 gpm
Accuracy (%): - GPM Max.: 5
Fitting: Polypropylene Chamber Material: -
Housing Material: Polypropylene Length: 1 43/64 in
Flow Range (GPM): 0.5 to 5 Center-Center Fitting Size: -
Agency Compliance: - Seal Material: -
Width (In.): 3-1/16" Type: Rotor
Connection Size: 1/4 in O-Ring: Buna
Includes: Low Flow Adapter Center-Center Insert Size: -
Length (Straight Wireway): 1 43/64 in Country of Origin (subject to change): United States
Feedback Help us improve our product information

Description

Flow Indicator, Flow Indicator, For Pipe Size 1/4 in, Connection Size 1/4 in, Connection Type FNPT, Fluid Temp. Range -20 Degrees to 180 Degrees F, Wetted Materials Buna N, Ceramic, Polysulfone, Polypropylene, PPS Compsite, Max. Pressure 40 psi @ 180 Degrees F, 100 psi @ 70 Degrees F, Flow Range 0.5 to 5 gpm, Max. Viscosity 200 SUS, Flow Material -, Rotor, GPM Max. 5, Max. Voltage -, Length 1 43/64 in, Width 3 1/16 in, Height 2 3/8 in, Housing Material Polypropylene, Fitting Polypropylene
