  9. Flow Rate Sensor, Turbine, 2 GPM Max
Shop All Flow Rate Sensors
Gems Sensors

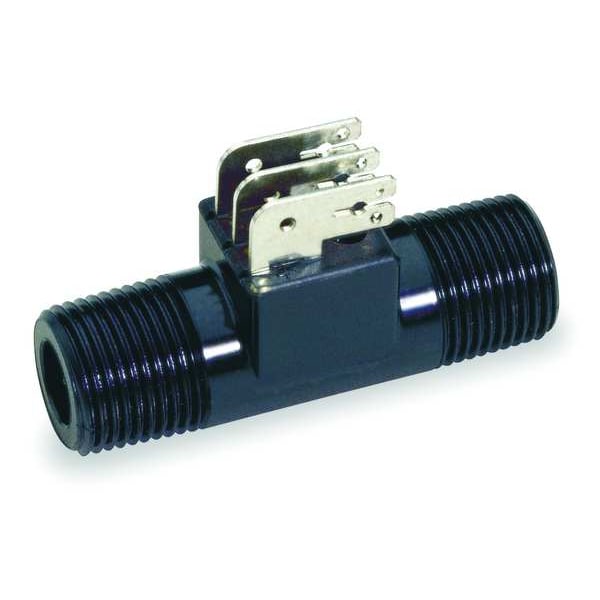

Flow Rate Sensor, Turbine, 2 GPM Max

product price: $172.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Turbine
  • Overall Length 2.2 in
  • Input Power 5 to 24 V DC @ 8mA
  • Connection Size (In.) 3/8 MNPT
  • Pulses per Gallon 17,400 pulses/gal
See all product information

Product Information

Dimensions

Overall Length 2.2 in
Connection Size (In.) 3/8 MNPT
Width (In.) 45/64 in
Length (In.) 2 5/32 in
Height (In.) 1 3/16 in
Overall Height 1.2 in
Connection Size 3/8 in
Overall Width 0.7 in

Details

Item Flow Rate Sensor
Type Turbine
Input Power 5 to 24 V DC @ 8mA
Pulses per Gallon 17,400 pulses/gal
Operating Temp. Range (F) 212 Degrees F
Flow Range (LPM) 0.5 to 7.5
Repeatability (%) +/-0.5
Output Frequency (Hertz) 38 to 575
Includes Spade Terminals
Operating Pressure (PSI) 200 psi
Housing Material Nylon
Burst Pressure (PSI) 2,500 psi
Recommended Filtration (microns) 24 micron
Wetted Materials Nylon, PTFE/Graphite
Flow Range (GPM) 0.13 to 2.0
Max. Voltage 24
Circuit Type NPN
Flow Range 0.13 to 2.0
Max. Viscosity (SSU) 32 to 81
Accuracy (%) +/-3
Pulses per Liter 4,600 pulses/L
Standards CE Certified, CSAus Certified, RoHS
Accuracy +/-3%
Operating Temperature - Maximum 212 Degrees F
Operating Pressure - Maximum 200 psi
Flowmeter Type Turbine
Connection Type NPT
Pulse Rate 17,400 pulses/gal
Transistor Circuit Type NPN
Wetted Material Nylon, PTFE Graphite
Filter Rating - Maximum 50 micron
Viscosity - Maximum 81 SUS
Voltage - Maximum 24V DC
Operating Temperature - Minimum -4 Degrees F
Flow Rate - Maximum 2 gpm
Output Frequency 575 Hz
Flow Rate - Minimum 0.13 gpm

Description

Flow Rate Sensor, Flowmeter Type Turbine, Connection Size 3/8 in, Connection Type NPT, Flow Rate - Maximum 2 gpm, Flow Rate - Minimum 0.13 gpm, Viscosity - Maximum 81 SUS, Housing Material Nylon, Filter Rating - Maximum 50 micron, Operating Pressure - Maximum 200 psi, Accuracy +/-3 Percent, Output Frequency 575 Hz, Voltage - Maximum 24V DC, Pulse Rate 17,400 pulses/gal, Wetted Material Nylon, PTFE Graphite, Standards CE Certified, CSAus Certified, RoHS, Includes Spade Terminals
