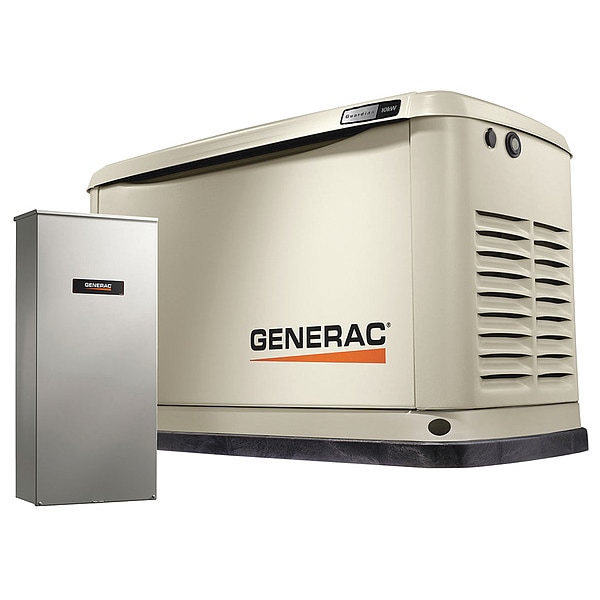

10kW Propane / 9kW Natural Gas Generator, Single Phase, Air Cooled, Automatic Standby

  • Mfr # 7172

  • Zoro # G0210184

product price:  $4,649.99
/ea
Additional $170.00 delivery surcharge applies per item.
See details

Key Features

Fuel Type
Natural Gas/Propane
Generator Fuel Type
Liquid Propane/Natural Gas
Phase
Single
Amps
45
Rated Voltage
240V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7172
Zoro #
G0210184
UPC #
696471074673
Country of Origin
United States

Dimensions

Height
29 in
Width
25 in
Length
48 in
Engine Size
460 cc
Length (Straight Wireway)
48 in
Overall Length
48 in
Overall Width
25 in
Fuel NPT Pipe Connection Size
3/4 in
Overall Height
29 in
Wire Rope Length
48 in

Details

Item
Automatic Standby Generator
Fuel Type
Natural Gas/Propane
Generator Fuel Type
Liquid Propane/Natural Gas
Phase
Single
Transfer Switch Included
Yes
Amps
45
Rated Voltage
240V AC
Generator Voltage
120V AC/240V AC
Engine Cooling
Air
Standby Power Rating
10kW LP/9kW NG
Carbon Monoxide (CO) Sensor
No
CARB Compliant
Yes
Sound Level dBA
61 dBA
Fault Indicator Lights
No
Fuel NPT Pipe Connection Sz.
3/4 in
Hz
60 Hz
Low Coolant Level Alarm
Yes
Engine RPM
3,600 RPM
Includes
100A Transfer Switch
Automatic Volts Regulation
Yes
Over Speed Shutdown
Yes
Min. Gas Pressure @ Generator (In WC)
10 to 12 LP
Battery Included
No
Repeat of Exercise Cycle
7 day
NG Consumption @ Half Load
101 cu ft/hr
Battery Requirements
26R, 540 CCA
Power Factor
1
LP Consumption @ Half Load
0.97 gph
Main Circuit Breaker
Yes
Enclosure Material
Aluminum
kVA Rating
5.4 kVA
Standards
UL 142/ULC SG01, UL/CUL 2200
Engine Block Heater
Optional
Over Crank Protection
Yes
High Temp. Alarm
Yes
Run Time Hour Meter
Yes
Generator Mfr. Warranty Details
5 yr
Low Oil Pressure Alarm
Yes
12VDC Battery Charger
Yes
Color
Bisque
Rated Watts
10000
Weight
338 lbs
Frame Material
Aluminum
Transfer Switch Current Rating
100 A
Rated Frequency
60 Hz
Rated Current @ 240V AC - Natural Gas (NG)
37.5 A
Exercise Cycle Interval
7 day
Propane (LPG) Consumption @ Full Load
54 cfh
Propane (LPG) Consumption @ 1/2 Load
0.97 gph
Includes Battery
No
Manufacturer Warranty
5 yr
Noise Level
61 dBA
Battery CCA Rating
540 CCA
Wi-Fi Equipped
Yes
Engine Brand
Generac
Safety Features
Automatic Voltage Regulator (AVR), High Temperature Alarm, Low Coolant Level Alarm, Low Oil Warning, Over Speed Shutdown, Overcrank Protection, Run Time Hour Meter
Rated Current @ 240V AC - Propane (LPG)
41.7 A
Starter Type
12V DC
Running Wattage - Propane (LPG)
10 kW
Apparent Power Rating
5.4 kVA
Transfer Switch Coverage
Whole House
Battery Group Number
Group 26R
Natural Gas (NG) Consumption @ Full Load
127 cfh
Engine Displacement
460 cc
Minimum Fuel Pressure - Natural Gas (NG)
10 in wc
Maximum Fuel Pressure - Natural Gas (NG)
12 in wc
Maximum Fuel Pressure - Propane (LPG)
12 in wc
12V DC Battery Charger
Yes
Service Rated Transfer Switch
Yes
Natural Gas (NG) Consumption @ 1/2 Load
101 cfh
Engine Speed
3,600 RPM
Minimum Fuel Pressure - Propane (LPG)
10 in wc
Running Wattage - Natural Gas (NG)
9 kW

Description

The Generac 7172 is a single-phase Automatic Standby Generator designed to provide reliable backup power for residential or small commercial applications. This air-cooled unit is powered by a Generac 460 cc engine that operates at 3,600 RPM and is compatible with both Liquid Propane (LP) and Natural Gas (NG).

Power and Performance:

  • Standby Power Rating: Delivers 10 kW on Liquid Propane and 9 kW on Natural Gas.
  • Electrical Output: 240V AC with an amperage of 41.7 A (LP) or 37.5 A (NG).
  • Efficiency: Features Automatic Voltage Regulation (AVR) to maintain stable power and a power factor of 1.
  • Sound Level: Operates at 61 dBA. Fuel and Consumption:
    • Fuel Connection: Utilizes a standard 3/4 in. NPT pipe connection.
    • Fuel Pressure: Requires a minimum of 10 in. wc and a maximum of 12 in. wc for both fuel types.
    • Consumption at Half Load: Consumes 0.97 gph of LP or 101 cu ft/hr of Natural Gas. Construction and Intelligence:
      • Enclosure: The unit is housed in an aluminum enclosure finished in a bisque color.
      • Automatic Operation: Includes a 100A Transfer Switch
