General Tools High Resolution Digital Manometer DM8252 - main

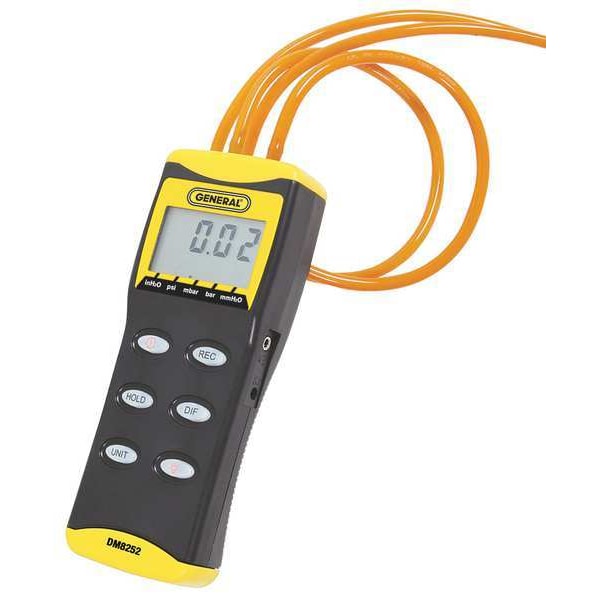

High Resolution Digital Manometer

  • Mfr # DM8252

  • Zoro # G4726872

product price: $239.99
/ea
Free Shipping & Returns

Key Features

Includes
1-year Limited Warranty, Hard Carrying Case, (2) Connection Hoses
Accuracy
+/-0.3% of Full Scale
Pressure Accuracy
+/-0.3% of Full Scale
Battery Type
9V
Pressure Resolution
0.004 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DM8252
Zoro #
G4726872
UPC #
681035412169
Country of Origin
China

Dimensions

Manufacturers Warranty Length
1 yr
Process Connection Size
5/32 in
For Tubing Diameter
15/64 in
Battery Size
9V

Details

Item
Digital Manometer
Includes
1-year Limited Warranty, Hard Carrying Case, (2) Connection Hoses
Accuracy
+/-0.3% of Full Scale
Pressure Accuracy
+/-0.3% of Full Scale
Battery Type
9V
Pressure Resolution
0.004 psi
Operating Range
0 to 55.2 in wc (0 to 13.79 kPa)
For Use With
Computer Peripherals and Pneumatic Controls, HVACR Technicians Measuring Pressure Levels, Medical Equipment
Operating Temp. Range
32 Degrees to 122 Degrees F
Storage Temp. Range
-40 to 140F
Display
4 Digit LCD
Pressure Range
0 psi to 2 psi
Connection Type
(2) 0.16 in ID x 0.24 in OD x 39.37 in Hoses
Max. Pressure
2 psi
Calibration Certificate Included
No
Maximum Pressure
2 psi
Batteries Required
Yes
Minimum Pressure
0 psi
Manometer Type
General Purpose Digital Manometer
Number of Pressures Measured
Dual
Display Units
bar, in H2O, in Hg, mbar, mm H2O, psi
Operating Pressure Range
0 to 55.2 in wc (0 to 13.79 kPa)
Min/Max Capture
Yes
Process Connection Type
Hose Barb
Number of Connections
2
Maximum Operating Pressure
2 psi
Storage Temperature Range
-4 Degrees to 140 Degrees F
Batteries Included
Yes
Minimum Operating Temperature
32 Degrees F
Weight
7.8 oz
Series
DM8252
Auto Power Off
Yes
Digital Display Features
4 Digit LCD
Maximum Operating Temperature
122 Degrees F
Type of Pressure
Differential, Gauge
NIST Traceable Certificate
No
Data Hold
Yes
Pressure Measurement - Maximum
2 psi
Includes Batteries
Batteries Included
Includes NIST-Traceable Calibration Certificate
No NIST-Traceable Calibration Certificate Included
Process Connection Material
Silicone
Includes Min/Max Capture
Min/Max Capture
Number of Process Connections
2
Pressure Stages Measured
Dual
Digital Display Type
Backlit LCD
Number of Digits
4
Operating Temperature - Minimum
32 Degrees F
Pressure Measurement - Minimum
0 psi
Data Interface
RS-232
Includes Data Hold
Data Hold
Includes Data Logging
No Data Logging Included
Operating Pressure - Maximum
2 psi
Operating Temperature - Maximum
122 Degrees F
Pressure Type Measured
Differential, Gauge

Description

Digital Manometer, Maximum Pressure 2 psi, Minimum Pressure 0 psi, Accuracy +/-0.3 Percent of Full Scale, Process Connection Size 5/32 in, Process Connection Type Hose Barb, Batteries Included Yes, Digital Display Features 4 Digit LCD, NIST Traceable Certificate No, Series DM8252, Auto Power Off Yes, Batteries Required Yes, Battery Type 9V, Calibration Certificate Included No, Data Hold Yes, Data Interface RS-232, Display Units bar, in H2O, in Hg, mbar, mm H2O, psi, For Tubing Diameter 15/64 in
